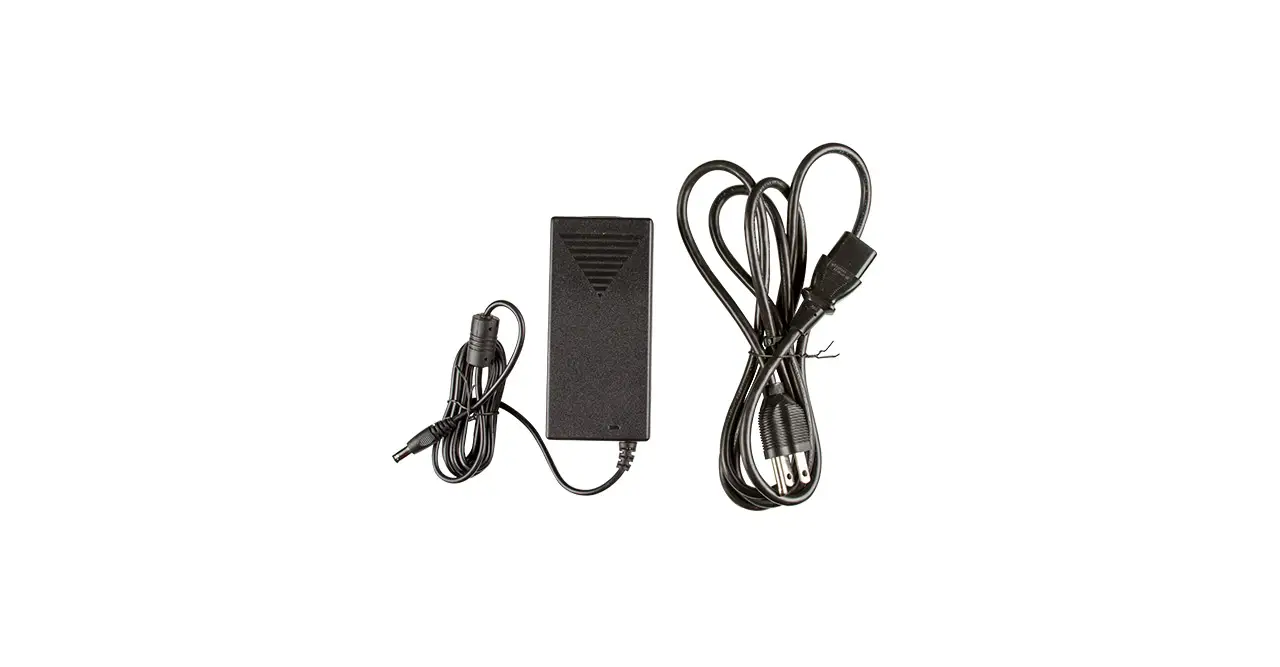

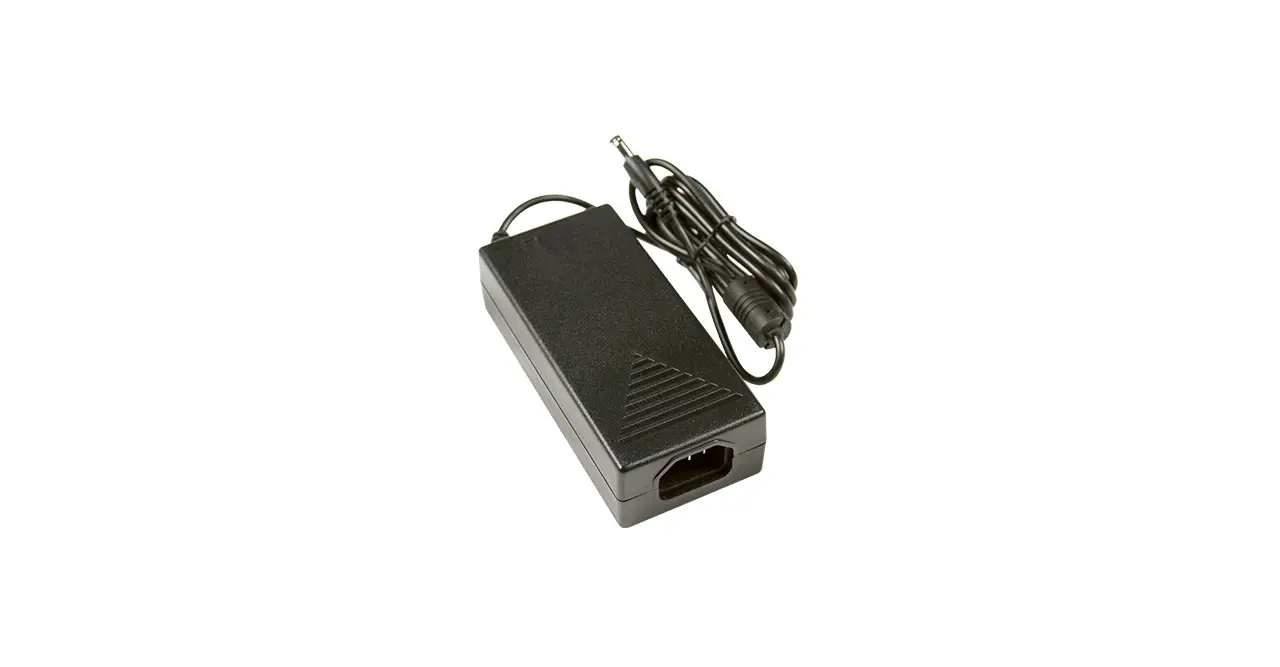

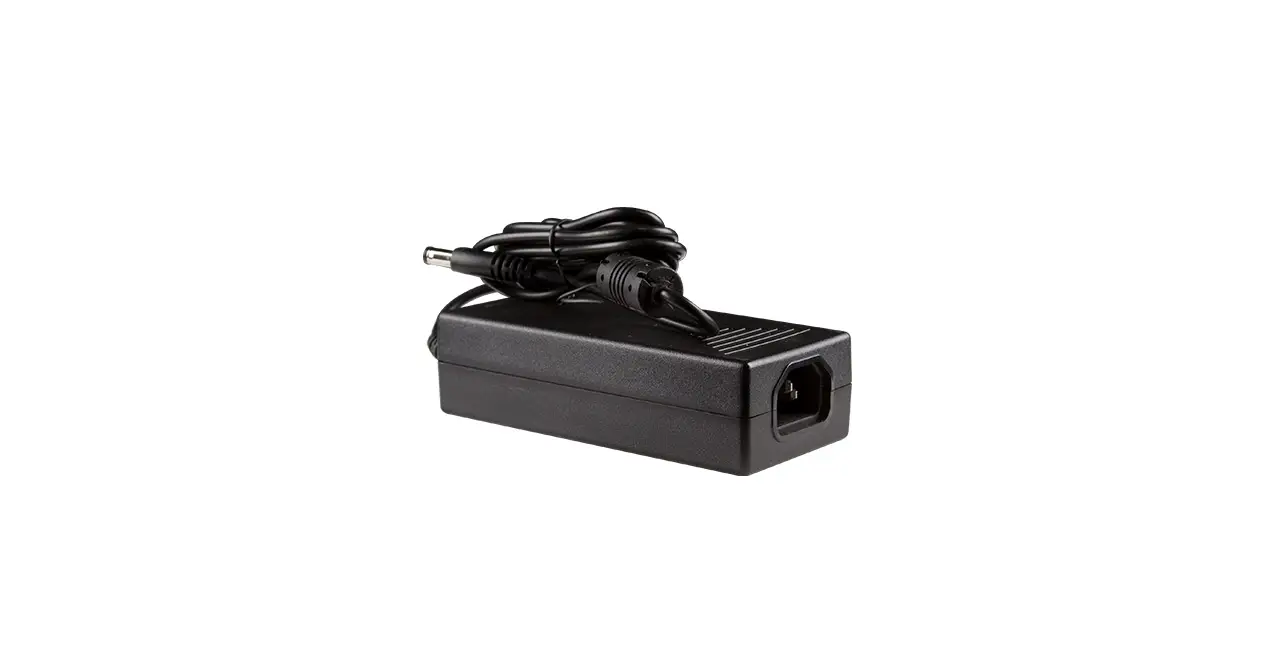

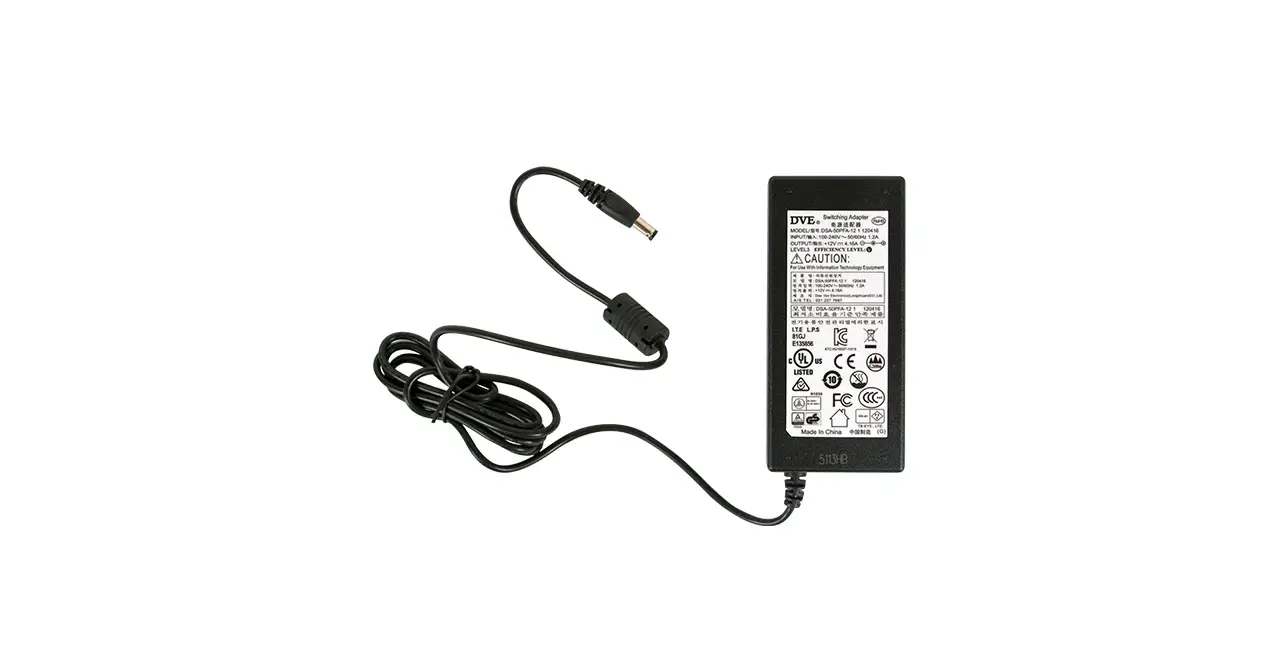

VZ-PSU2-N
AC 120V to DC 12V Adapter for 9.7 to 24” Monitors
- Output : 12V DC / 3A
- Input : 100~ 240VAC / 50~60Hz / 1.5A
- Fully tested for 10.1″ RTC, 17″ & 19″ RTN, 21.5″ LED-SN, LED-L1, 19″, 22″ & 24″ CME / CMP series
- Safe & Reliable
- Complies with Environmental Protection Requirements
- Long Product Life, MTBF of 50,000 hours
Specification | Dimension | Spec & Manual
Series : Power Adapter
Compatible Monitors
Product Features
- Model Number: VZ-PSU2-N
- Fully testified for 101 RTC, 17″ & 19″ RTN, 19″ & 22″ & 24″ CMP / CME / CMX, 21.5″ LED-S
- DC 12V / 3A output
- AC 100~240V / 50 or 60Hz / 1.5A input
- Green Power On LED
- Energy Efficiency Rating: V
- Compact & Light-Weight
- Safe & Reliable
- Complies with International Safety Standards & Environmental Protection Requirements
- Over voltage / Overload / Over current / Short Circuit Protection
- Complies with Environmental Protection Requirements
- Wide Voltage Compatibility
- Long Product Life, MTBF of 50,000 hours
- EMC meets EN 55022/ EN 55024 / GB 9254 (CISPR 22) international standard
- Safety : UL, KCC, CCC, TUV/GS, PSE, C-Tick
- EMI : CE, FCC/cUL, CCC, PSE
Specification
| Input – Voltage range | current | 100 ~ 240V AC, 50/60Hz | 1.5A |
| Output – Voltage | 12V DC |
| Output – Watt | 36 W |
| Output – Rated current | 3 A |
Protection
| Short-Circuit Protection | The Power Supply will be auto recovered when short circuit faults remove. |
| Over-Current Protection | The power supply will auto protected when output current over 120%-200% rate current. |
Regulation - Safety & EMI Standards
| Safety Standards | UL/CUL(UL60950), TUV-GS(EN60950), PSE(J60950), CCC(GB4943), KCC, C-Tick |
| EMI STANDARDS | FCC(PART15 CLASS B), CE(EN55022, EN55024), GB9254, GB17625.1, PSE(J55022) |
Dimensions & Weight
| Outline Dimension (W x H x D) | 2.14″ x 4.72″ x 1.25″ / 54.5 mm x 120 mm x 32 mm |
| Net Weight | 0.45 + 0.04 lbs / 0.205 ± 0.02 kg |
Interface
| Input Plug Type | IEC320 C14 AC PIN |
| Output Cord | WIRE: 18AWG / 1500 ± 50 mm | PLUG: JACK PLUG 5.5*2.1*10.5mm |
General Summary
| Construction | PC, ABS, or equivalent |
| Cable | 18 AWG/1C + SH |
| Cooling | Cooling shall be with natural convection cooling |
| Operating Temperature | Humidity | 32°F ~ 104°F / 0°C ~ +40°C | 10 ~ 90% RH. Non-condensing |
| Storage Temperature | Humidity | 14°F ~ 131°F / -10°C ~ +55°C | 10% ~ 90% RH. Non-condensing |
Product Dimension & Weight
Click below to enlarge
