  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 46", 49" UNB and 46" NB Monitors
    • 160lb / 72kg
    • VESA compliant : 200x200,600x400
    • Multi-monitor stacking
    • Spring-loaded release, open design, custom spacers
    • Top adjustable mounting brackets
    • Straight scissor-style extension
Hover to zoom, click to view
Scroll to learn more

Compatible Monitors

Model Number: VZ-XM46

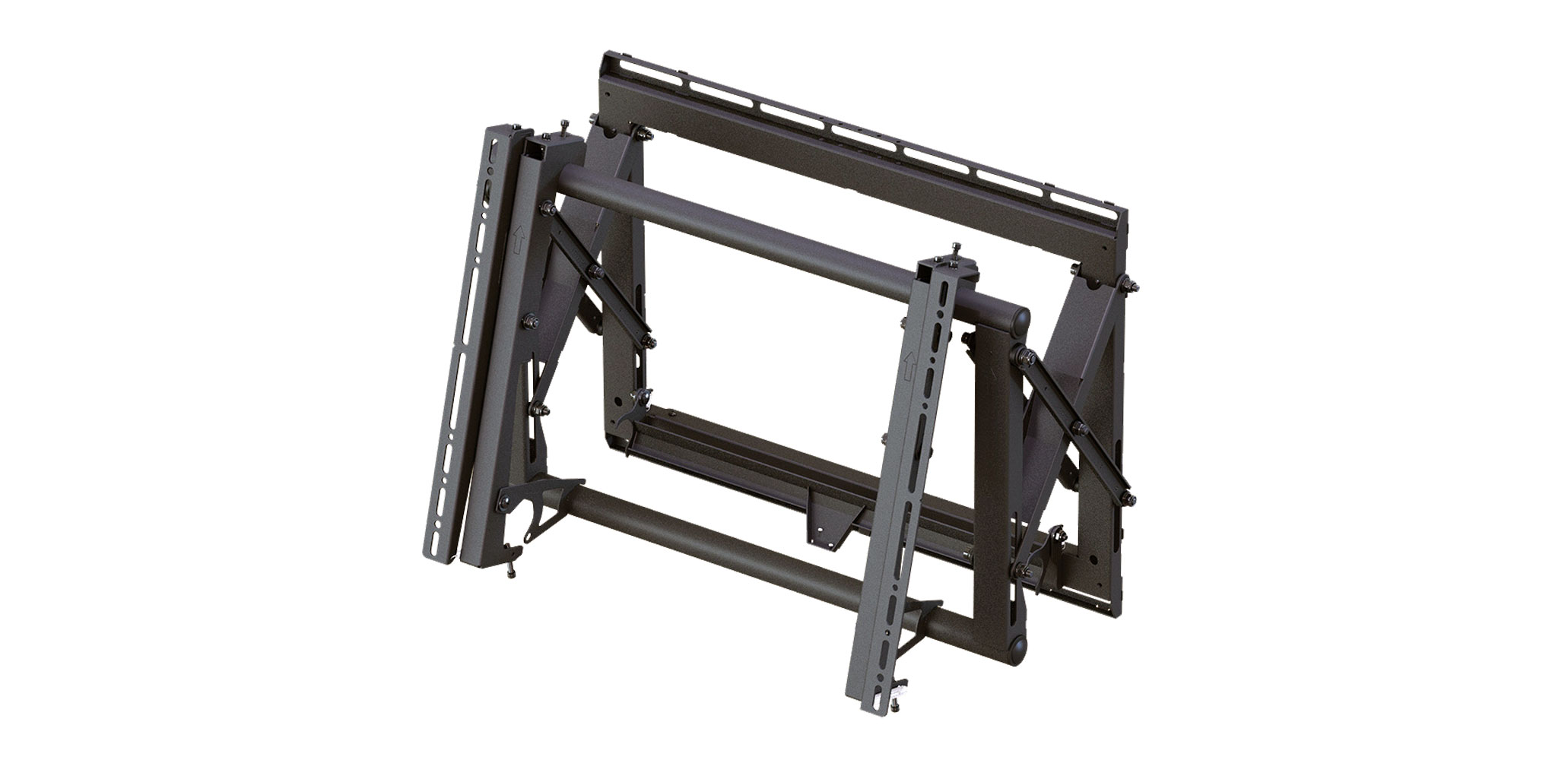

46" Flat Video Wall Mount

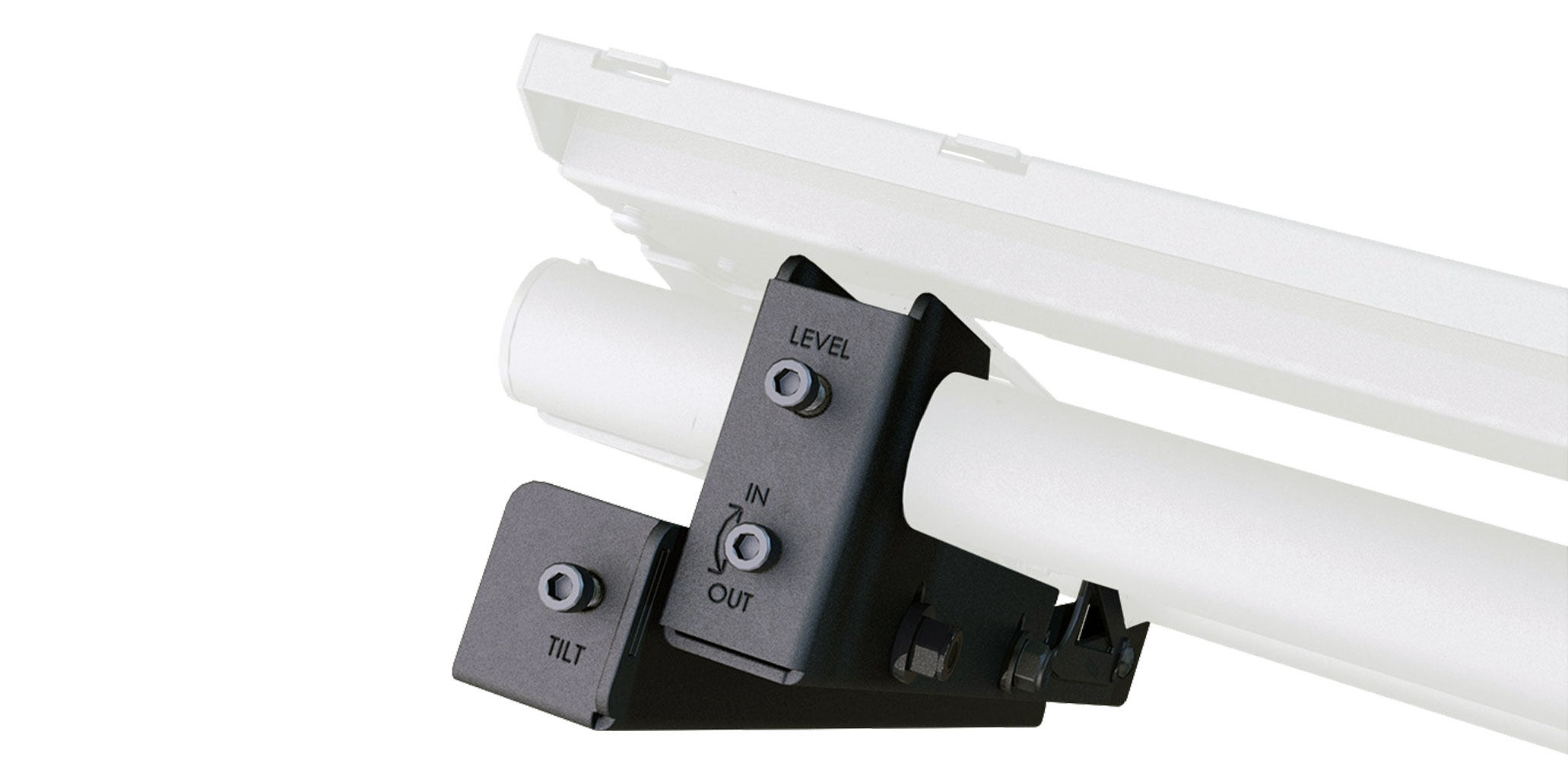

Patent pending, top-adjustable fine-tune mounting brackets ensure alignment and levelness of displays.

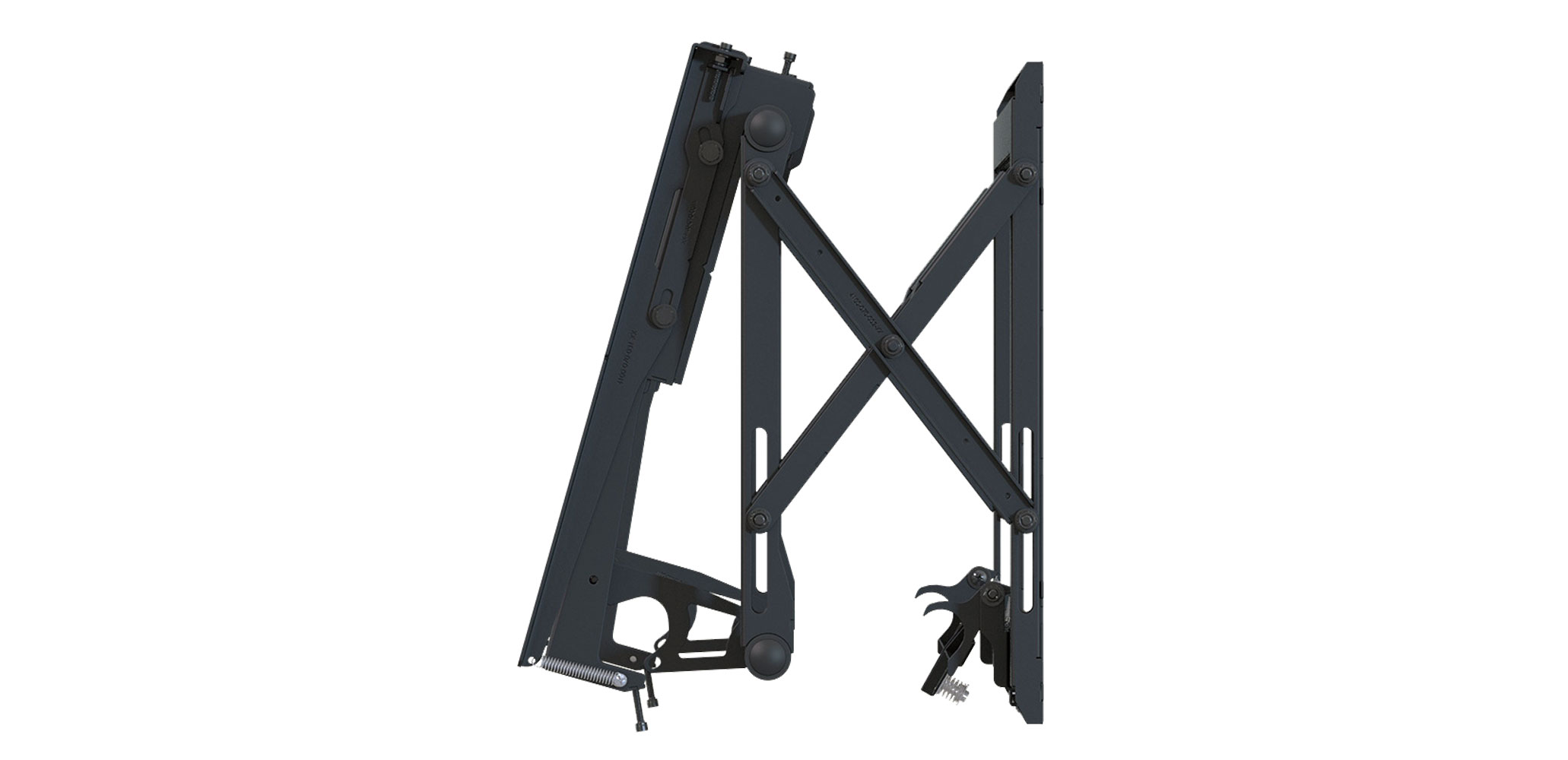

Scissor design and compact mounting arms allow for extension
in one smooth motion.
Advanced latch design and smaller base frame size provide quick and easy installation.

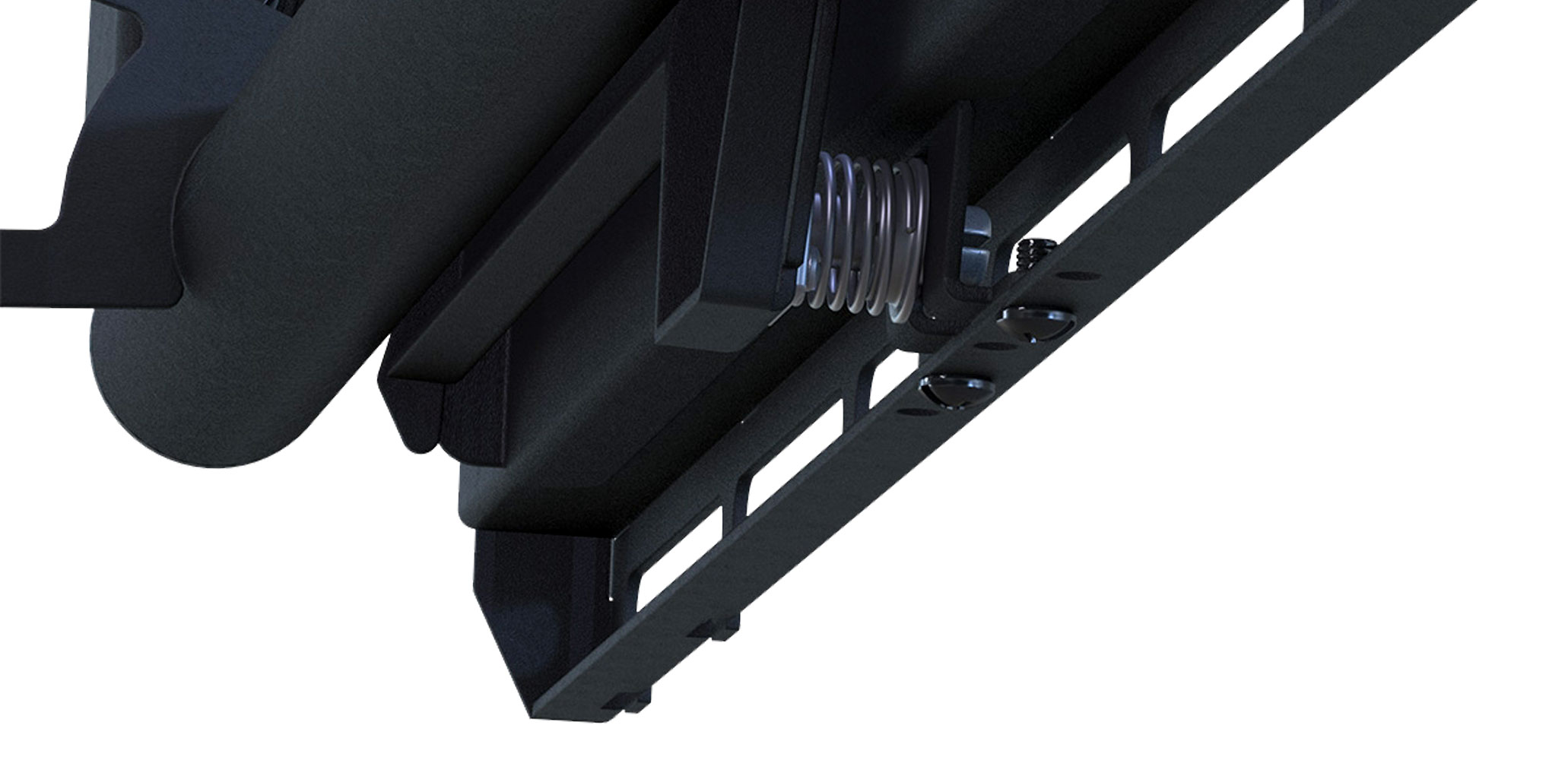

Spring loaded release and X, Y and Z axis fine tune adjustment system allows for easy and accurate installation.

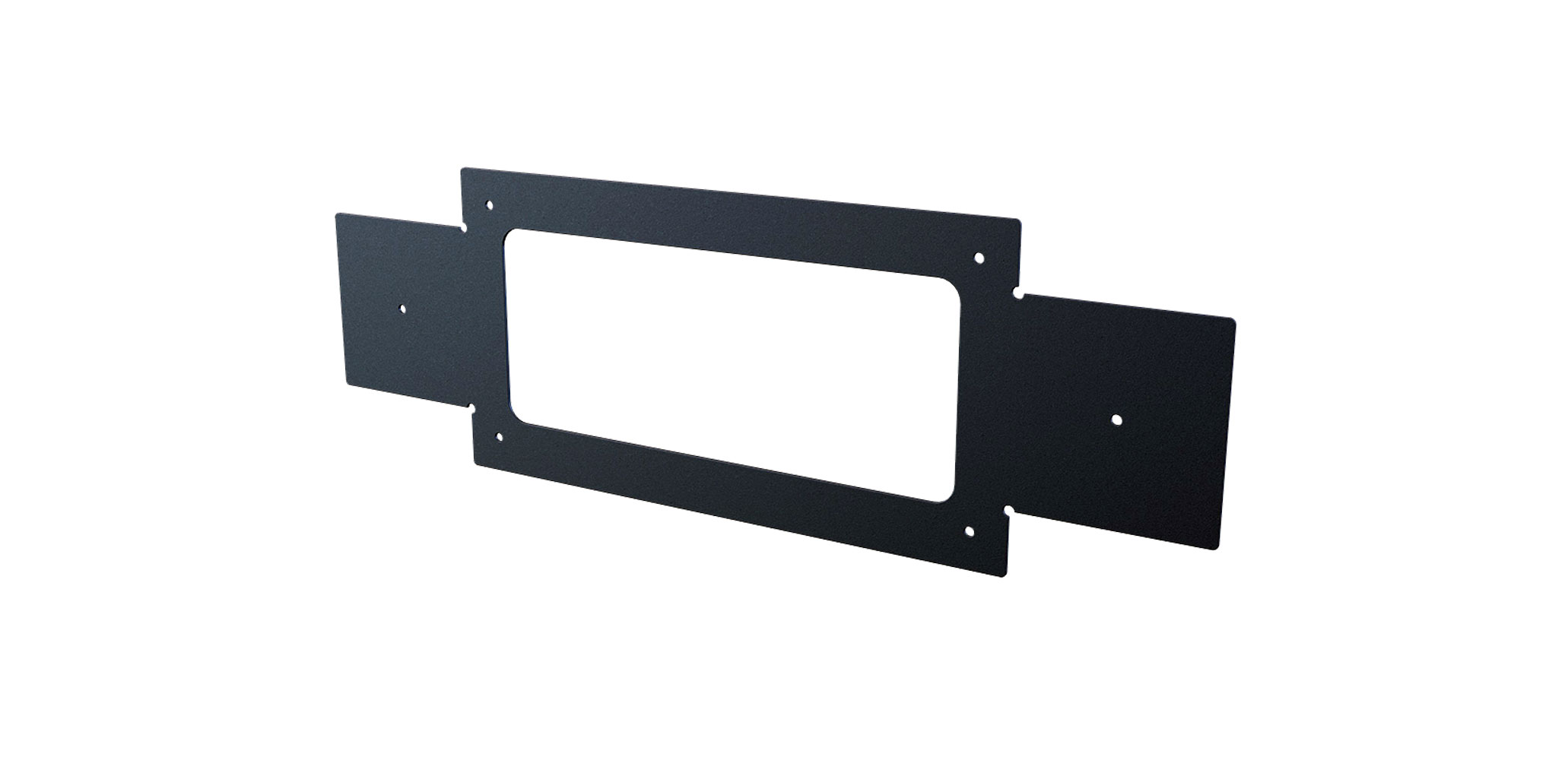

Laser cut, precision designed spacers ensure seamless alignment without need for time consuming adjustments.

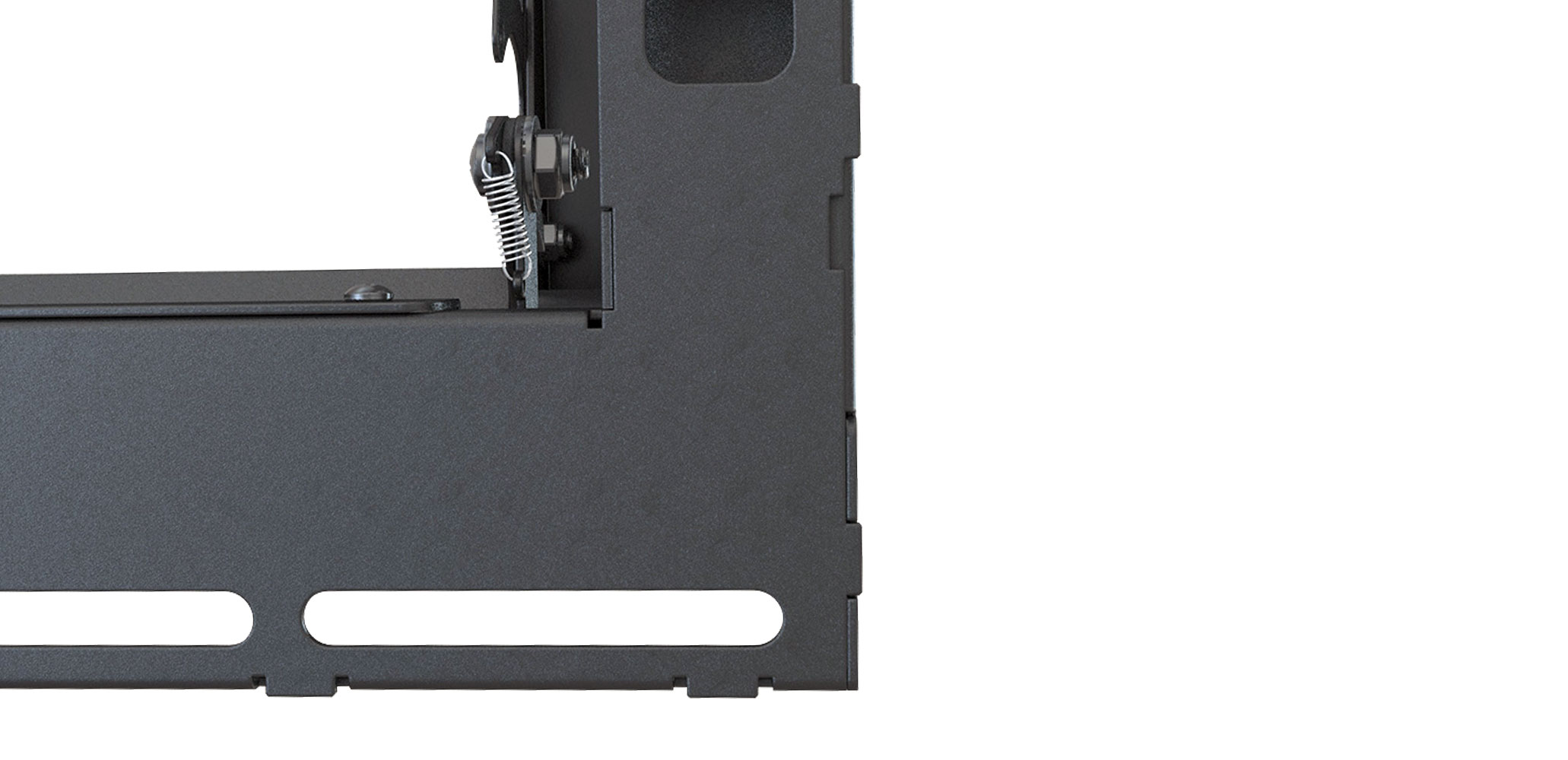

“Click-it” locking feature confirms display is secure with an audible noise.













VZ-46UNB

VZ-46NB

VZ-49UNB













Download VZ-XM46 PDF Specifications Sheet









  Monitor Size 46 inch
  Mounting Patterns Type Range
  Mounting Patterns 200 x 200 (Min) ~ 600 x 400 (Max) mm
  Extension 7.99” / 202.9 mm
  Weight Capacity per Head 160 lbs / 72.6 Kg

  Net Weight 44.15 lbs / 20 Kg
  Dimensions Width x Height x Depth - inch
  28.49 x 19.50 x 5.2 ~ 13.19
  Width x Height x Depth - mm
  724 x 495.3 x 132.08 ~ 335.026
  DIM Sizes Width x Height x Depth - inch
  28.49 x 19.50 x 5.2 ~ 13.19
  Width x Height x Depth - mm
  724 x 495.3 x 132.08 ~ 335.026





  * Specifications subject to change without notice
