  • 1CH PRO  4CH PRO  8CH PRO  16CH PRO  8CH DSM  12CH DSM  16CH DSM
    • Fan-less and rugged chassis
    • 1-channel Full HD video inputs and 4-channel outputs
    • 1080p video playback across multiple displays simultaneously
    • Industrial grade high-performance systems
    • Spectacular HD 1080p output
Scroll to learn more

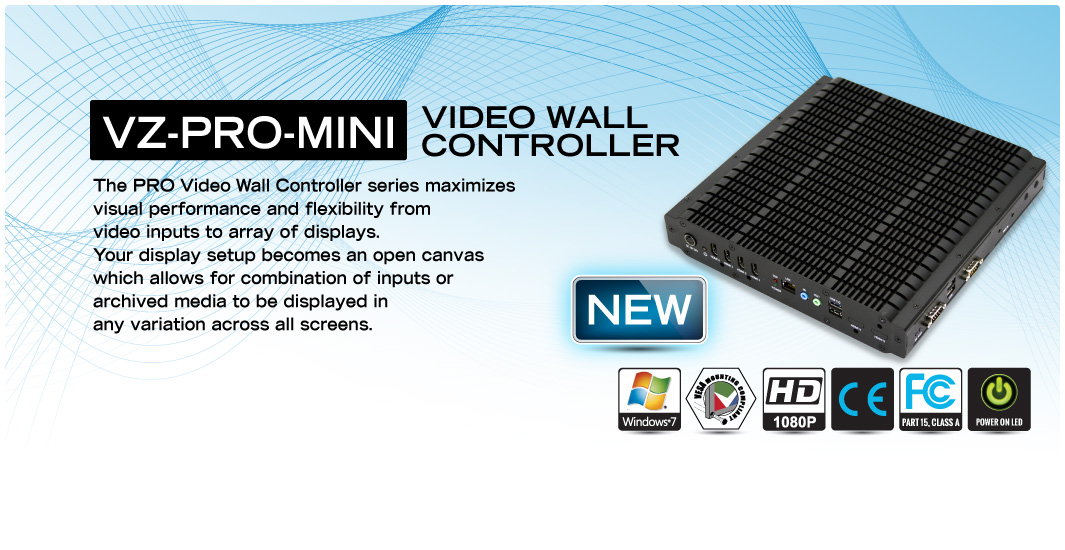

Model Number: VZ-PRO-MINI

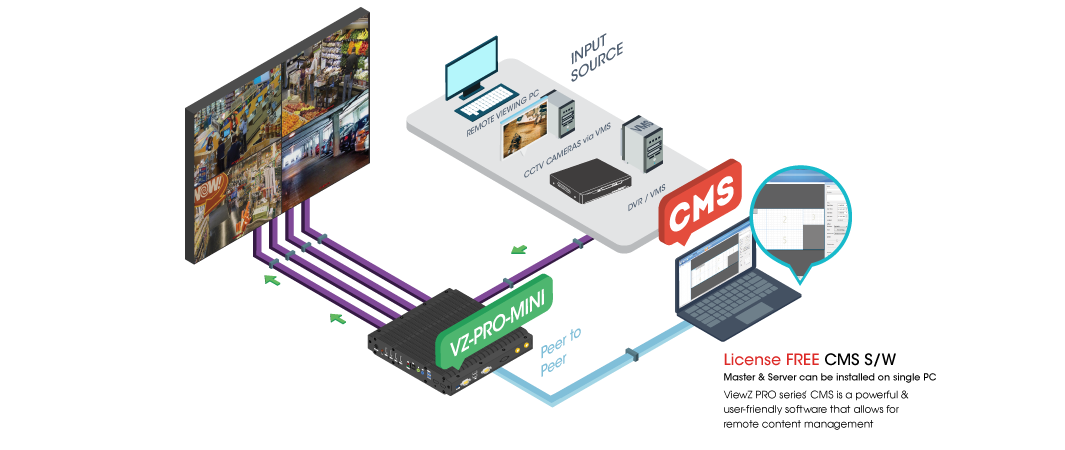

1 Full HD Video input and up to 4 Full HD video outputs
Simultaneous 1080p video playback support
Spectacular 1080p HD
Industrial grade highperformance systems with Windows® 7 Professional OS
Max bit rate - 100Mbps ( 4 channel )
Fan-less and rugged chassis
3-Year Warranty











Download VZ-PRO-MINI PDF Specifications Sheet

Download VZ-PRO-MINI PDF Quick Guide

Download VZ-PRO-MINI PDF User Manual
















  Processor 1.0 GHz Quad Core E-series processor
  Storage SATA or mSATA 256GB
  System Memory 8GB DDR3 ECC
  (option : 16GB available)
  Graphics Integrated Chrome® 645/640 DX11 3D/2D
graphics with MPEG-2, WMV9, VC-1 and
H.264 video decoding acceleration
  Resolution / per channel Up to 1920 x 1080


  HDMI capture-in port 1
  VGA capture-in port (optional) 1
  Antenna hole for 3G or TV module (optional) 1
  Antenna for Wi-Fi (optional) 1
  DIO port for 8 -bit GPIO 1
  HDMI Output 4
  USB 3.0 / 2.0 2 / 2
  COM port for RS-232/422/485 1
  Network (RJ-45) 1 - 10/100/1000 Base-T
  PC Stereo In / Out 1 / 1


  Video Codec H.264, MPEG-4, VC-1, WMV9
  Video File Format WMV, AVI, MKV, ASF, FLV, MOV
  Image File Format JPEG, BMP, PNG, TIFF

  Outline Dimension 10.03” x 9.84” x 1.81”
  (W x H x D) 255mm x 250mm x 46 mm
  Net Weight 8.15 lbs / 3.7 Kg


  Vesa 100mm x 100mm


  Power - Electrical Ratings DC 12V, 2A (AC100 ~ 240V[50/60Hz])
  Power - Consumption 43.42W (Typical), 48.83W(Maximum)
  Mechanical Construction Aluminum alloy
  Regulations CE, FCC Class A
  Operating Temperature 32°F ~ 113°F / 0 °C ~ 45°C
  Operating Humidity 0% to 90% (Non-condensing)
  Storage Temperature 10 °C ~ 60°C @90%, Non-condensing
  Vibration Loading during OS 5Grms, IEC 60068-2-64, random, 5~500Hz, 1hr/axis
  Shock during operation 50G, IEC 60068-2-27, half size, 11ms duration
  System OS Windows® 7 Professional






  * Specifications subject to change without notice
