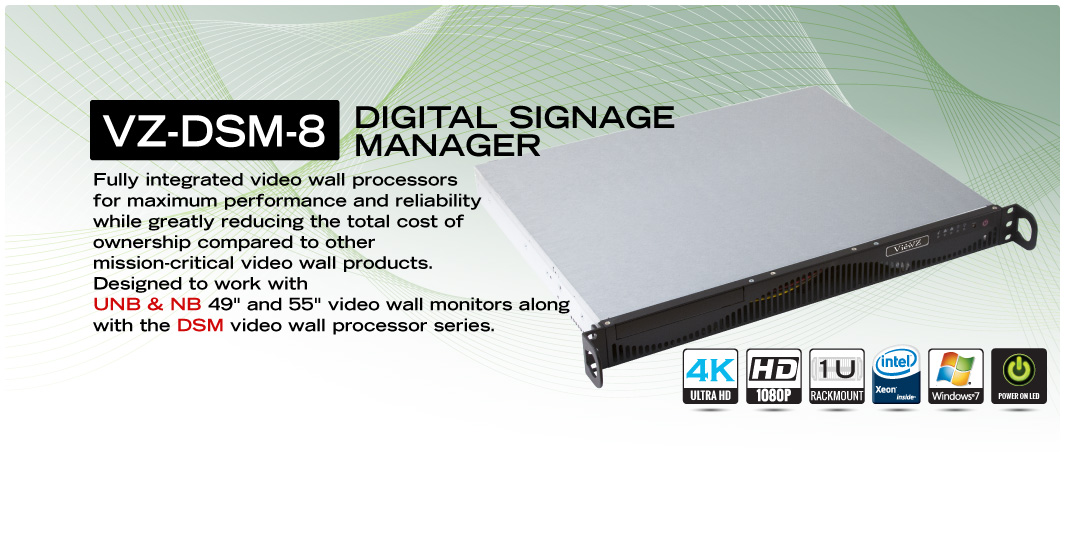

Model Number: VZ-DSM-8

8 output server-based Full HD Video Wall Processor
Simultaneous 1080p video playback support
Delivers authentic details and stunning colors with 4K Ultra HD content compatibility
Multi-display Media Server, ideal for 4 x 2 video wall and digital menu board
Compatible with an extensive variety of content including Flash, PPT, HTML 5, and the most popular video formats
Content management software
Designed to operate 24/7/365 in mission-critical installations
Optional 2 VHDCI to HDMI cables and 2 VHDCI to DVI cables
Max bit rate - 200Mbps ( 8 channel )
3-Year Warranty













Download VZ-DSM-8 PDF Specifications Sheet

Download VZ-DSM-8 PDF User Manual
















  Processor Intel® Xeon® E5 series processor
  Storage SSD 256GB
  System Memory 8GB DDR3 ECC
  (option : 16GB available)
  Graphics 1 x VIA uH4 4-DISPLAY
PCI-E graphics card
  Video Output 8 HDMI (8 DVI option available)
  Resolution / per channel Up to 1920 x 1080


  HDMI (via VHDCI) 8 ( DVI option available )
  USB 2
  PS/2 2
  Serial Port 1
  Network ( RJ - 45 ) 2 - 10/100/1000 Base-T
  IPMI LAN Port 1


  Video Codec H.264, MPEG-4, VC-1, WMV9
  Video File Format WMV, AVI, MKV, ASF, FLV, MOV
  Image File Format JPEG, BMP, PNG, TIFF

  Power Supply 1 x 350W AC to DC PSU
  Power Input 100 - 240V AC
  Dimensions ( W x D x H ) 17.2” x 14.5” x 1.7” / 437 x 368 x 43 mm
  Operating Temperature 41°F ~ 95°F / 5 °C ~ 35°C
  Humidity 8% to 90% (Non-condensing)
  Weight 14.0 lbs / 6.35 Kg
  System OS Windows® 7 Professional
 Optional VHDCI to HDMI cablels 2
 Optional VHDCI to DVI cables 2






  * Specifications subject to change without notice
