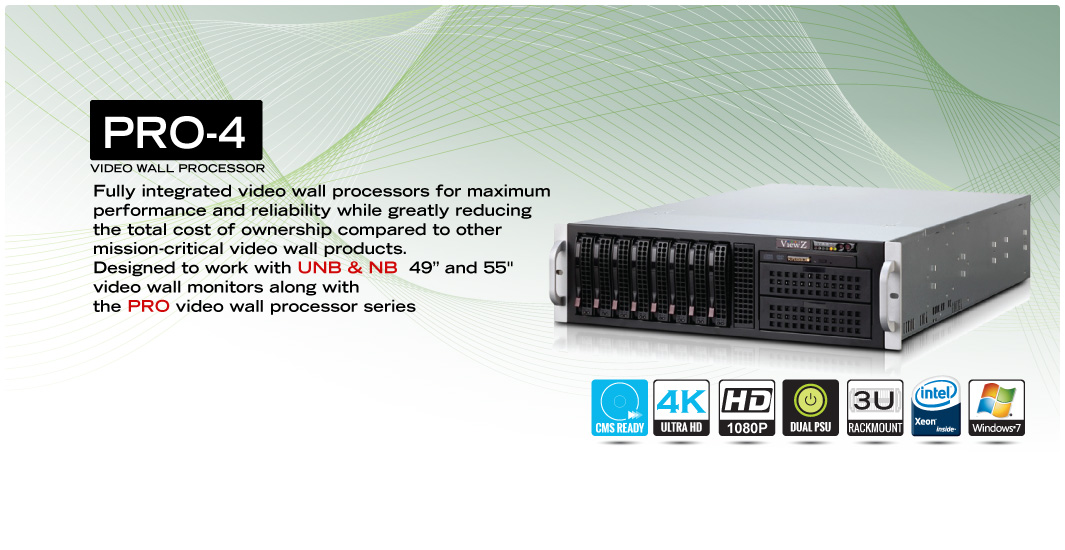

Model Number: VZ-PRO-4 |
|
Up to 4 Full HD video inputs and outputs |
|
Simultaneous 1080p video playback support | |
Spectacular Ultra HD(4K) support for outstanding visual experiences | |
Available HDCP compatibility add-on option | |
Industrial grade highperformance systems based on Intel® Xeon® CPU, Windows® 7 Professional OS | |
Redundant power supply and RAID options for maximum reliability | |
Max bit rate - 100Mbps ( 4 channel ) | |
3-Year Warranty |
*HDCP compatibility is required for playing content from HDCP-encrypted devices such as Blue-ray and DVD players.
Download VZ-PRO-4 PDF Specifications Sheet
Download VZ-PRO-4 PDF User Manual
Processor | Intel® Xeon® E5 series processor |
Storage | SSD 256GB x 2 |
System Memory | 8GB DDR3 ECC |
(option : 16GB available) |
|
Graphics | 1 x VIA uH8 8-display PCIe graphics cards |
Resolution / per channel | Up to 1920 x 1080 |
HDMI (via VHDCI) Output | 4 ( DVI option available ) |
DVI (via VHDCI) Input | 4 |
USB 2.0 | 2 |
USB 3.0 | 2 |
Serial Port (COM) | 1 |
Network ( RJ - 45 ) | 2 - 10/100/1000 Base-T |
Video Codec | H.264, MPEG-4, VC-1, WMV9 |
Video File Format | WMV, AVI, MKV, ASF, FLV, MOV |
Image File Format | JPEG, BMP, PNG, TIFF |
Power Supply | 2 x 920W AC to DC PSU |
Power Input | 100 - 240V AC |
Dimensions | 17.2" (W) x 25.5" (D) x 5.2" (H) (437 x 648 x 132 mm) |
Operating Temperature | 41°F ~ 95°F / 5 °C ~ 35°C |
Humidity | 10% to 90% (Non-condensing) |
Weight | 54.4 lbs / 24.67 Kg |
System OS | Windows® 7 Professional |
Optional VHDCI to HDMI cablels | 2 |
Optional VHDCI to DVI cables | 2 |
* Specifications subject to change without notice |
