    • Large and Easy to View 5.6” LED Display

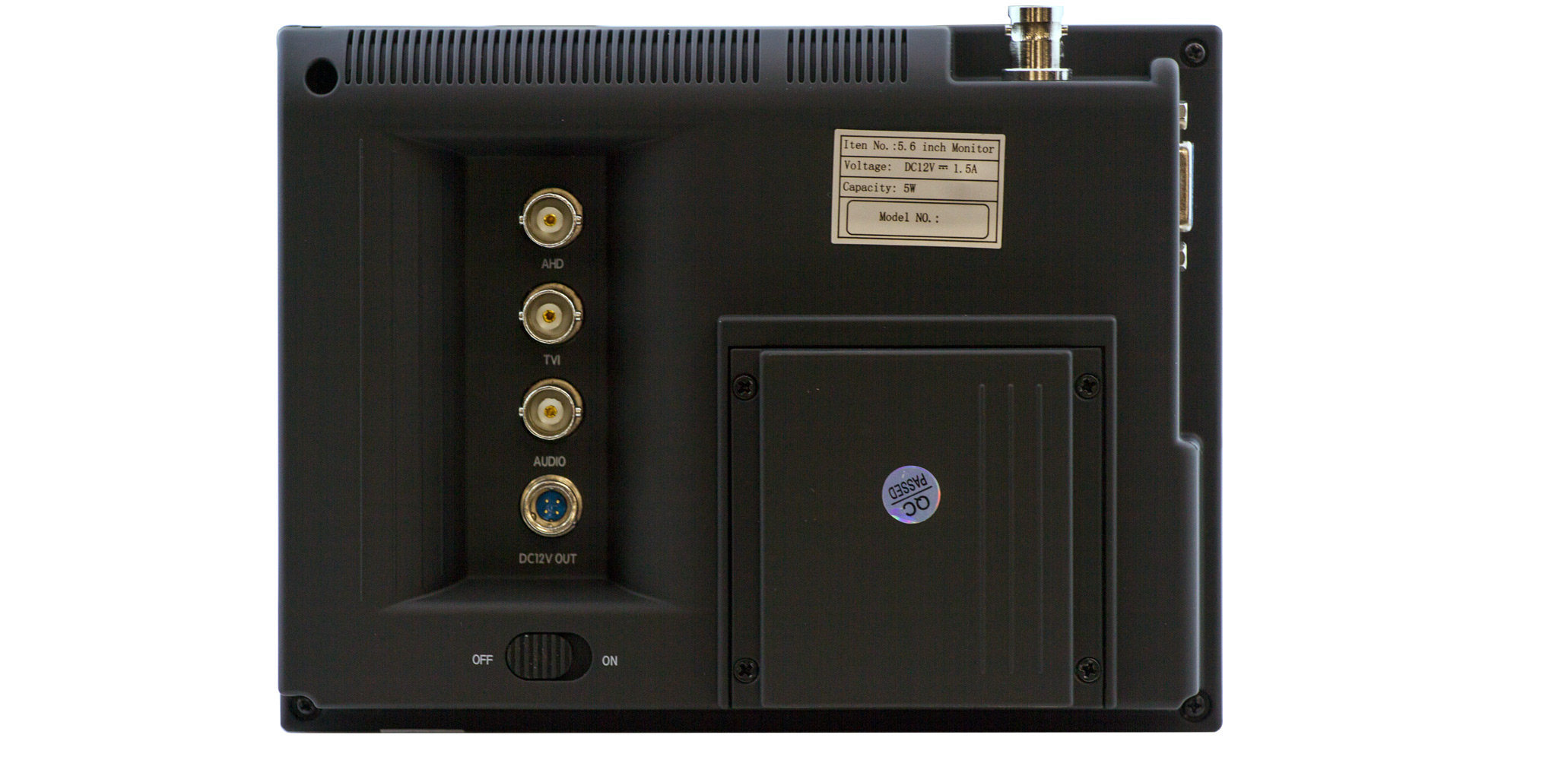

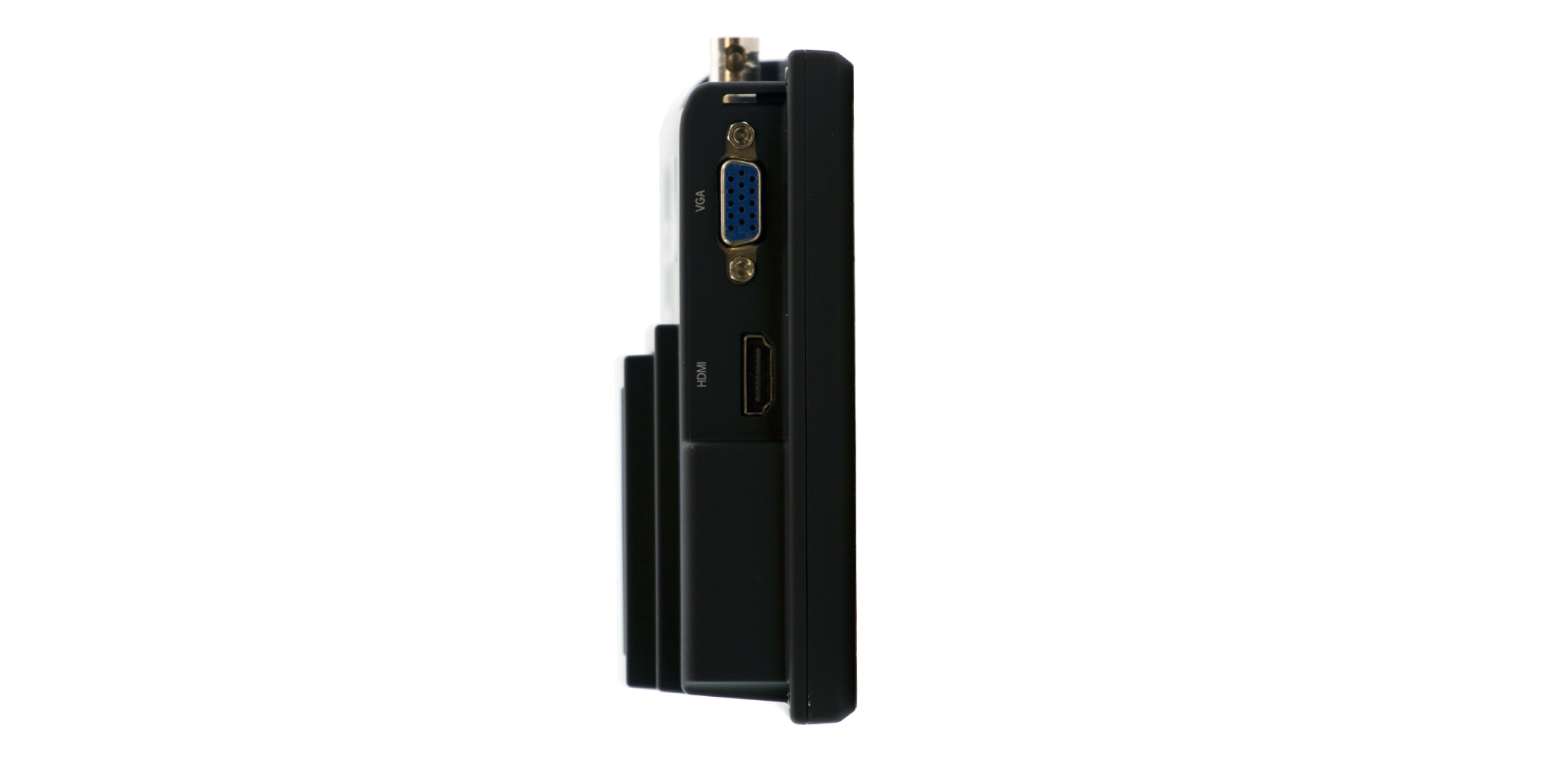

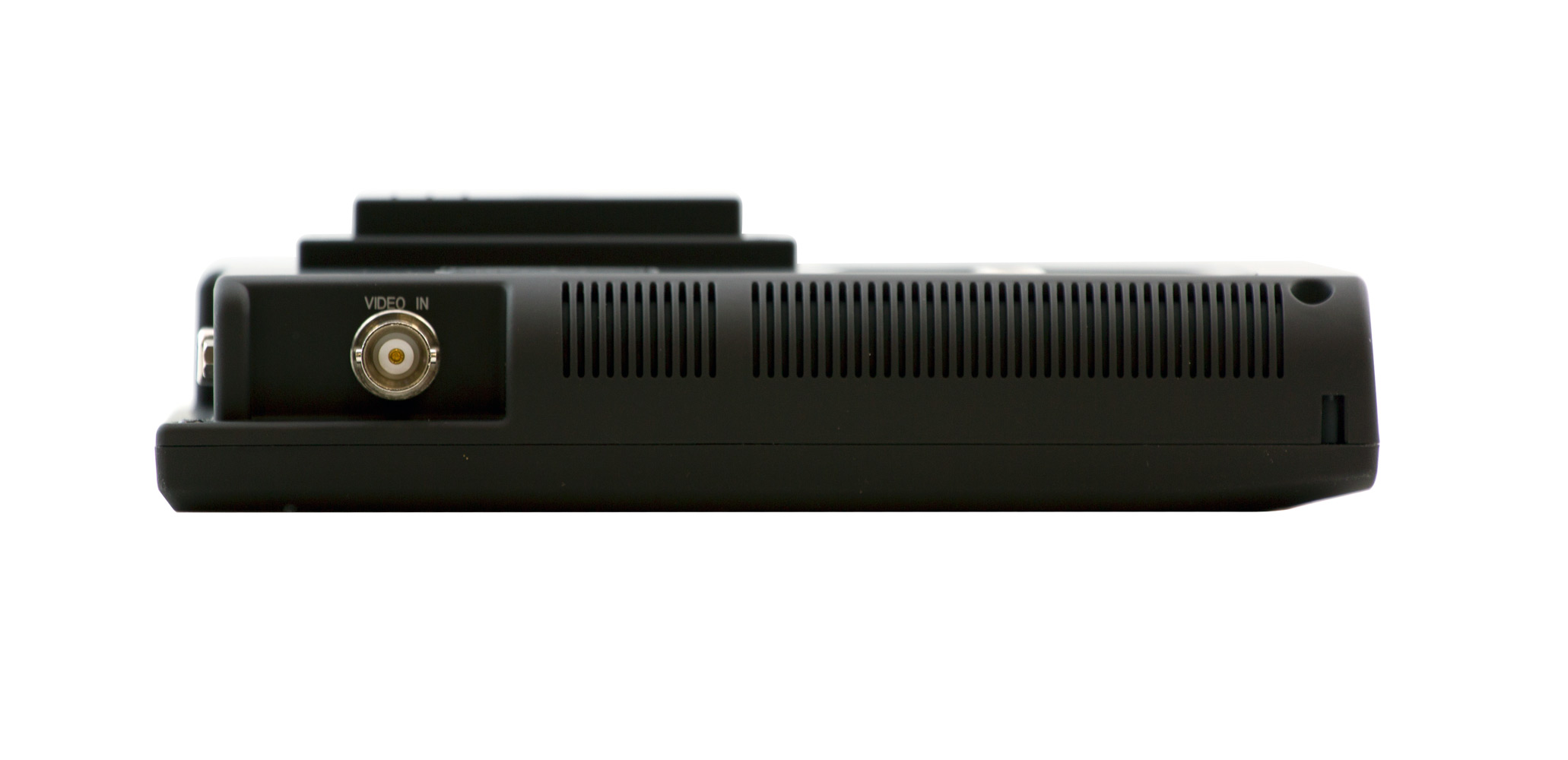

    • Analog and Digital Inputs (TVI, AHD, Composite-BNC, HDMI, VGA)
    • DV 12V Camera Power Out, Audio Support
    • Viewable while inside Protective Caser
    • Ni-Mh Rechargable Batteries
    • Ideal for quickly focusing and adjusting security cameras
       prior to and during installation.
Hover to zoom, click to view

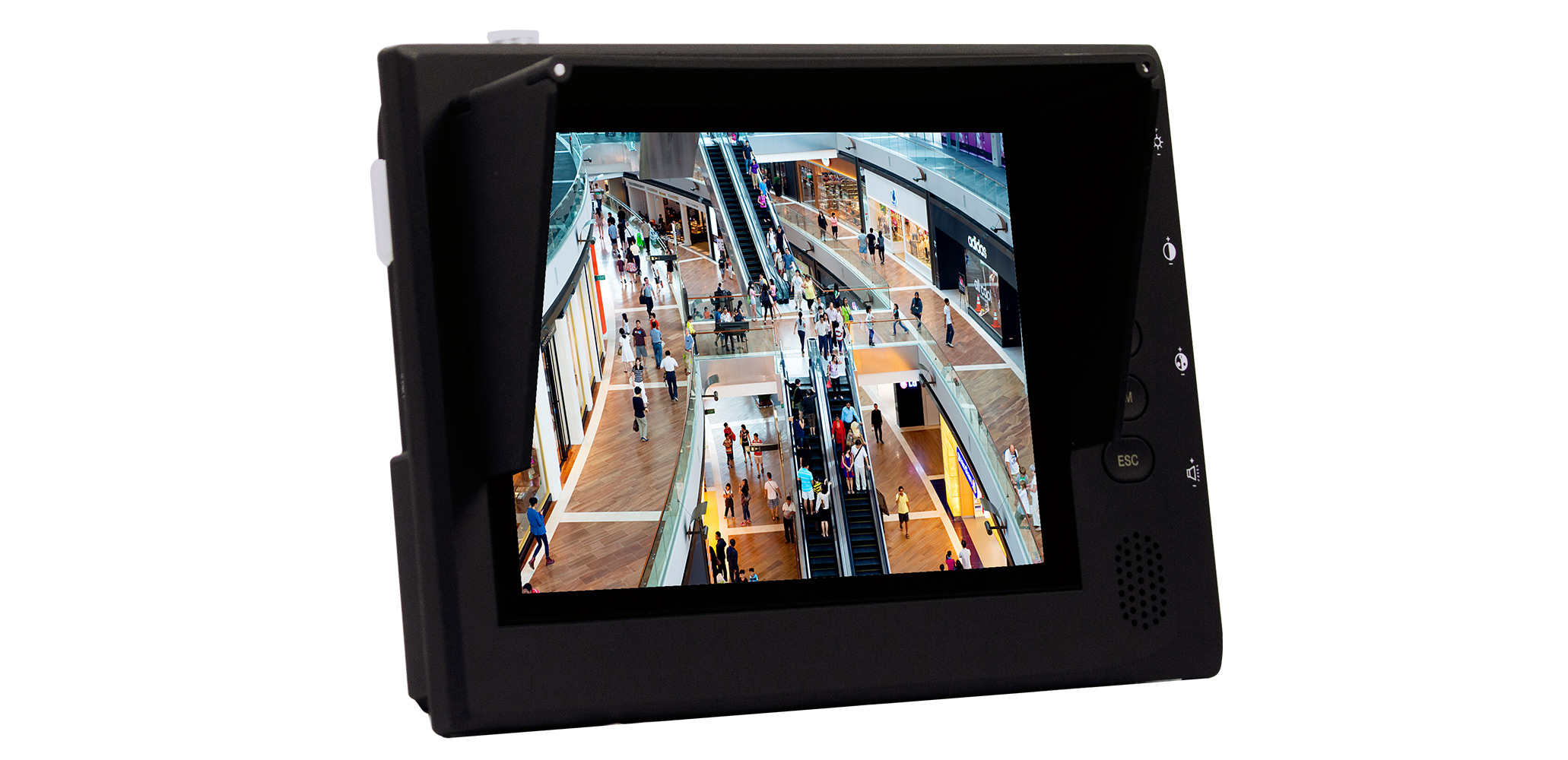

Model Number: VZ-56SM

5.6" Black Sunlight Readable LCD Test Monitor
640x480 / 4:3
1 TVI, 1 AHD, 1 BNC, 1 HDMI, 1 VGA and 1 audio Input, Rechargeable Battery
NTSC/PAL auto recognition
Sun Visor
OSD
2-Year Warranty













Download VZ-56SM PDF Specifications Sheet

Download VZ-56SM PDF Manual
















  Screen Size 5.6"
  Max Resolution 640x480 / 4:3
  Pixel Pitch 0.0588 mm x 0.176 mm
  Brightness 200cd/m²(Typical)
  Contrast Ratio 500:1
  Aspect Ratio 4 : 3
  Viewing Angle (H/V) 140°/120°
  Display Color 16.7 Million
  Response Time < 10ms
  Video System NTSC / PAL


  AV (Composite) In 1
  AHD In 1
  TVI In 1
  VGA In 1
  HDMI In 1
  Audio (BNC) In 1


  Power Saving Low Power Consumption
  NI-MH Battery
  Knob control Yes
  Camera Power Out 12V DC / 1500mA

  (W x H x D) inch 6.61 x 4.96 x 3.19
  (W x H x D) mm 168 x 126 x 81.2
  Net Weight 2.2 lbs / 1 kg

  Built in speaker 1W x 1


  Power - Electrical Ratings DC 12V (AC100 ~ 240V[50/60Hz])
  Power - Max Consumption 6W (SDI function enabled, no speaker output)
  Warranty - Parts / Labor 2 Year / 2 Year
  Warranty - MTBF (Approx.) 30,000 Hours
  Operating Temperature 32 - 104°F / 0 - 40°C
  Operating Humidity 5 ~ 80% RH
  Working voltage of battery DC 3.4V ~ 4.2V
  Regulation CE





  * Specifications subject to change without notice
