    • 3.5” Black Sunlight Readable LED Test Monitor
    • 320 x 240 Resolution
    • Low Power Consumption
    • 2-Year Warranty
    • BNC, Rechargeable Battery, Wrist Strip
    • Strap this 3.5" LCD on your wrist
    • Ideal for quickly focusing and adjusting security cameras
       prior to and during installation.
Hover to zoom, click to view

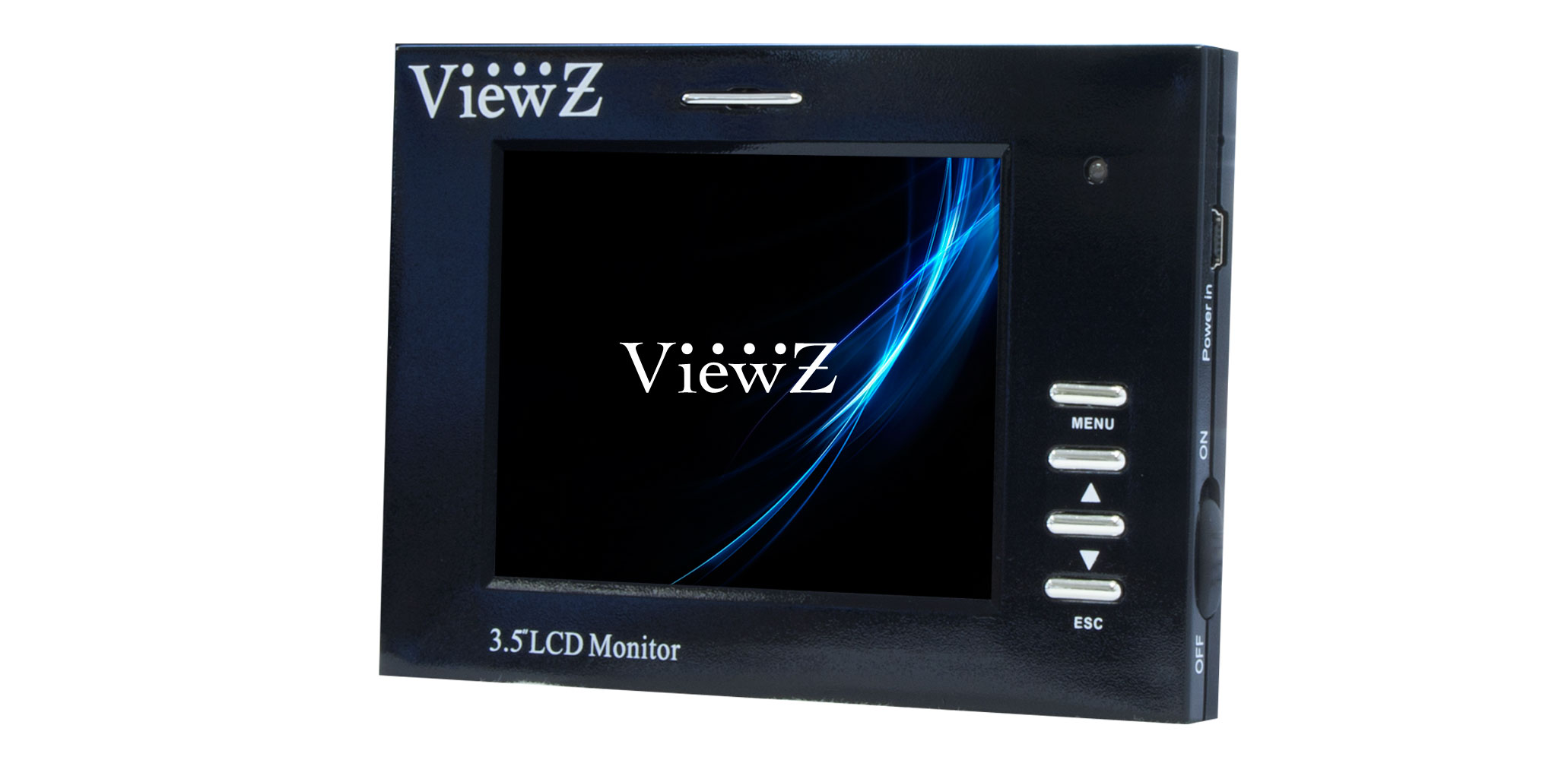

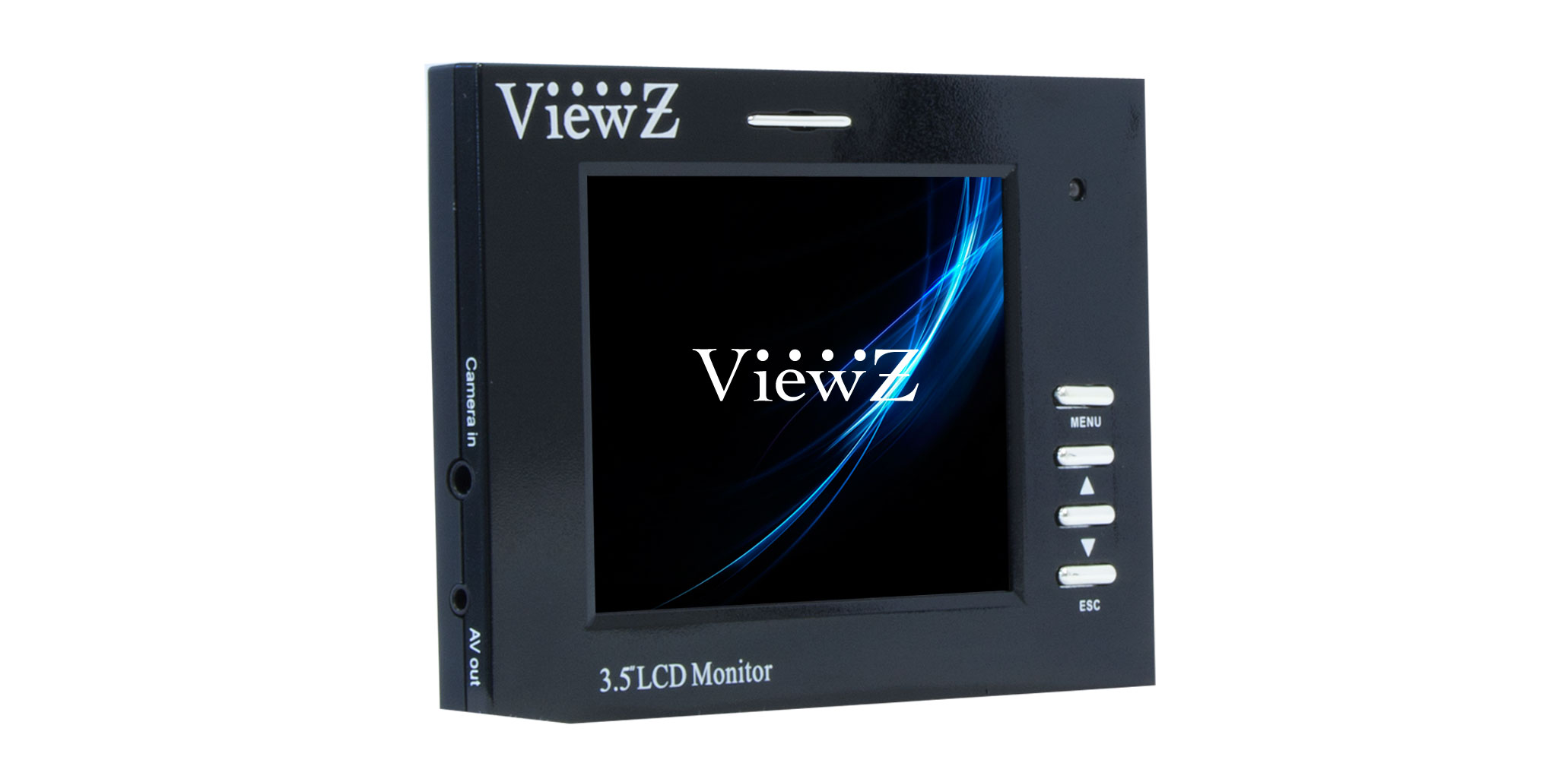

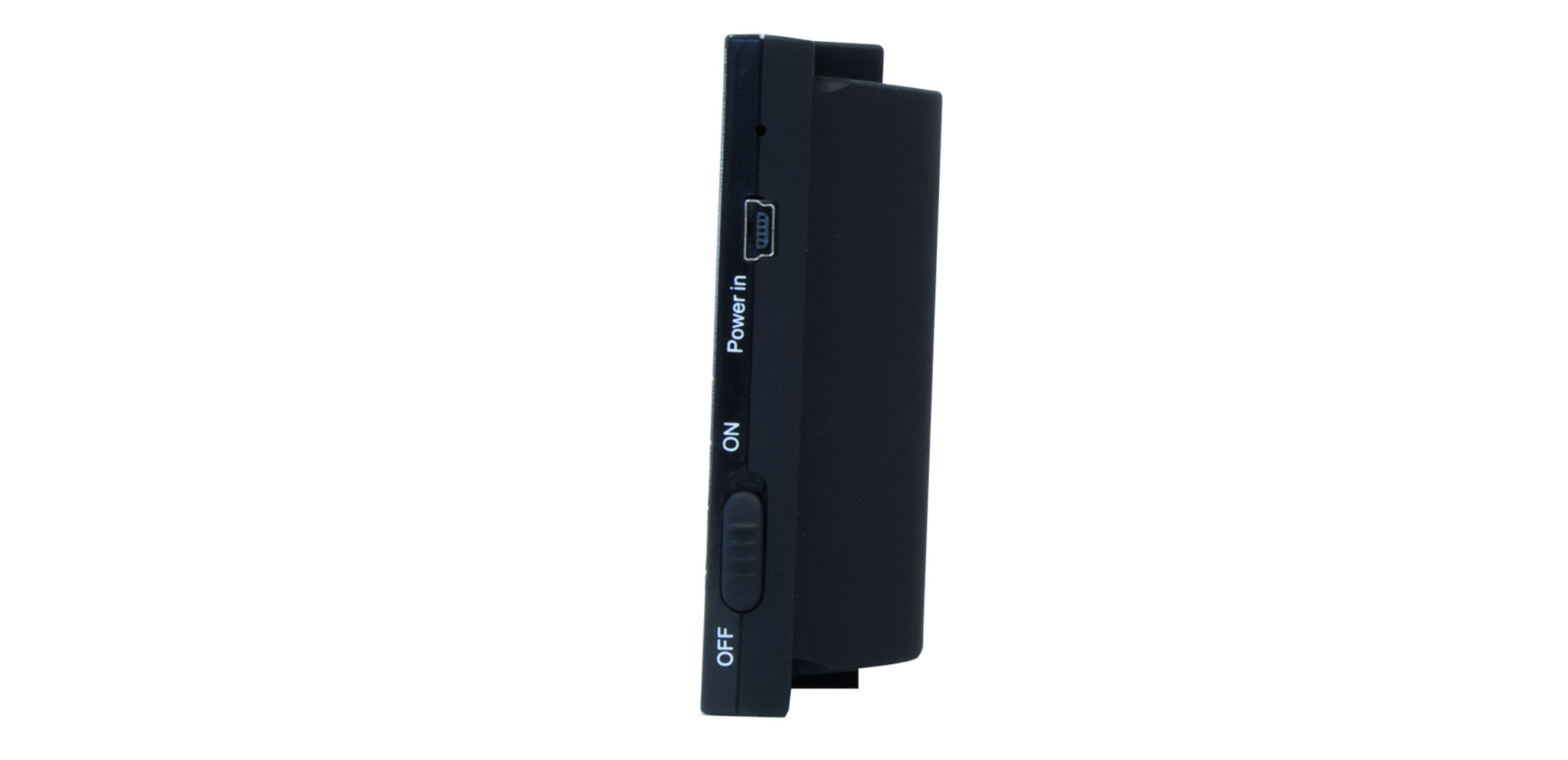

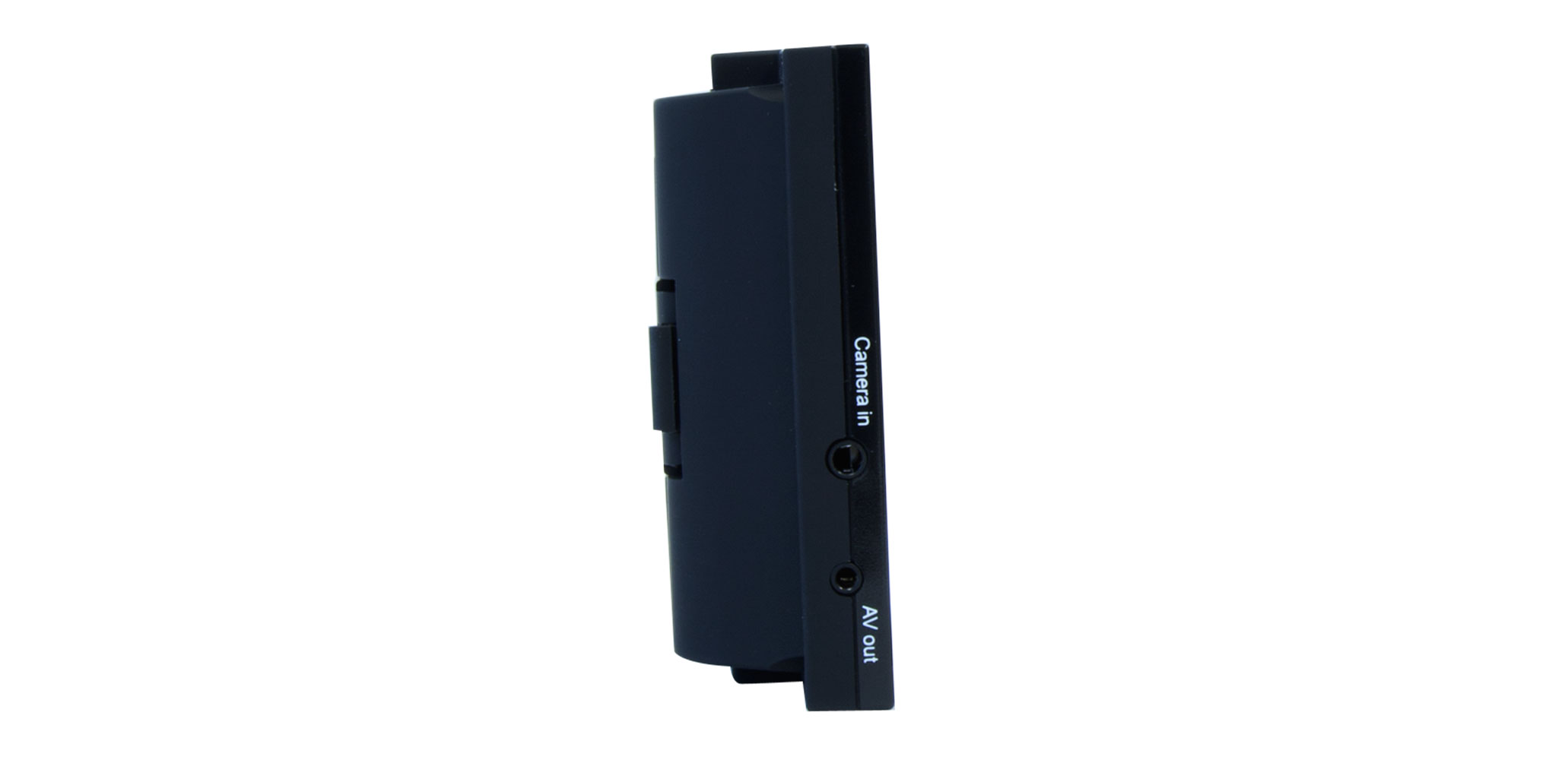

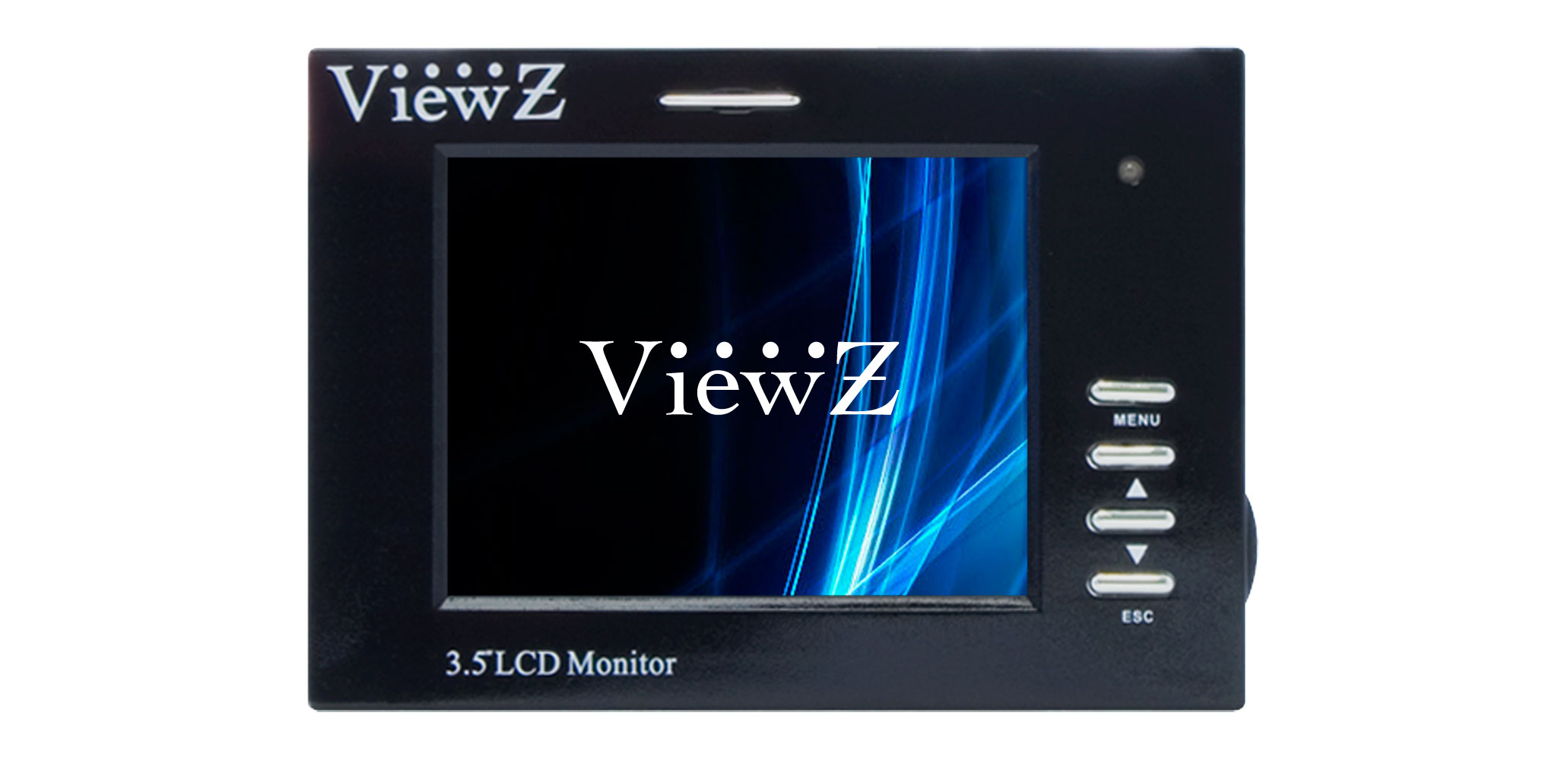

Model Number: VZ-35SM

3.5" Black Sunlight Readable LCD Test Monitor
320x240 / 4:3
BNC Input, Rechargeable Battery
Wrist Strap
OSD
2-Year Warranty













Download VZ-35SM PDF Specifications Sheet

Download VZ-35SM PDF Manual
















  Screen Size 3.5"
  Max Resolution 320x240 / 4:3
  Pixel Pitch 0.248mm x 0.248mm
  Brightness 250cd/m²(Typical)
  Contrast Ratio 350:1
  Aspect Ratio 4 : 3
  Viewing Angle (H/V) 100°/120°
  Display Color 16.7 Million
  Response Time < 25ms
  Video System NTSC / PAL


  AV (Composite) In / Out 1 / 1


  Sunlight Readable Yes
  Multi-Lingual Language English / Italian / Chinese


  Power - Electrical Ratings DC 12V
  Power - Consumption 4.05W
  Warranty - Parts / Labor 2 Year / 2 Year
  Warranty - MTBF (Approx.) 30,000 Hours
  Operating Temperature 32 - 104°F / 0 - 60°C
  Regulation CE





  * Specifications subject to change without notice
