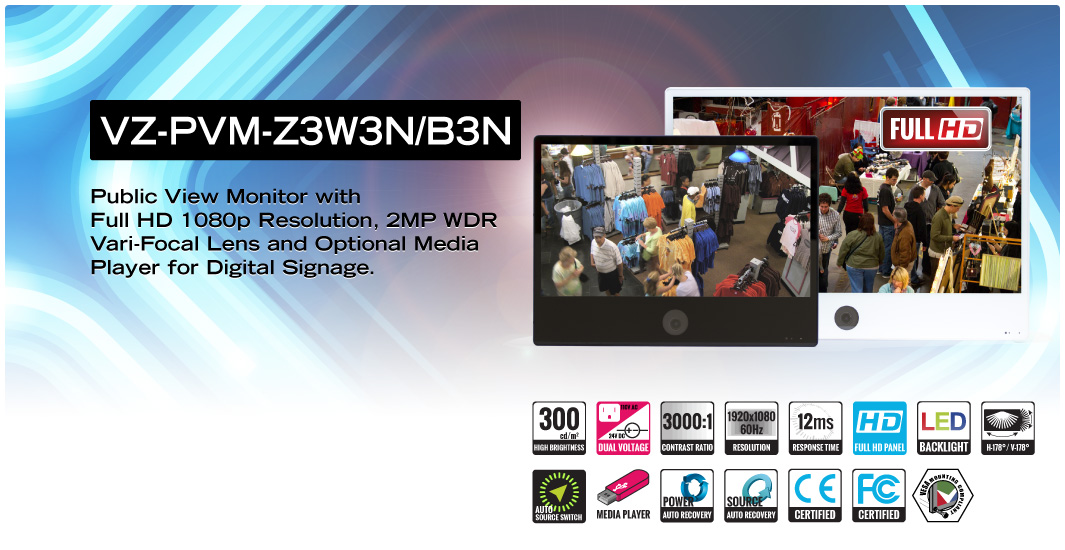

Model Number: VZ-PVM-Z3 _ _ N |
|
27" Black Panel Widescreen LED "A" Commercial-Grade Monitor |
|
Full HD 1920x1080 / 16:9 | |
1920x1080 2 Mega Pixel HD D-WDR Camera | |
DC Auto Iris 2.7-12 mm Vari-focal Lens | |
720x480 Camera BNC Output | |
Motion Sensor and Time Interval based Source Switching |
|
Alert Text / Multi-Color Blinking LED | |
HDMI In / VGA In / AV(Composite) In / Camera (CVBS) Out / Audio In-Out | |
3D Comb Filter / De-Interlace | |
Camera and Monitor OSD / Remote Control | |
PIP / PBP | |
Auto Source Switching | |
Auto Power & Source Recovery | |
VESA Wall Mount 100 x 100 / 200 x 200 | |
AC 110~240V or DC 24V Dual Voltage | |
MTBF: 50,000 hrs | |
3-Year Warranty |
Model Features | Family |
Series | Size | Color | Voltage | |
32", Black, AC 110V / DC 24V | VZ-PVM- | Z | 3 | B | 3 | N |
32", White, AC 110V / DC 24V | VZ-PVM- | Z | 3 | W | 3 | N |
Series: Z (HD PVM) , I (IP PVM) |
|
Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch) |
|
Color: B (Black) , W (White) |
|
Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC110V / DC24V), 4 (PoE) |
Download VZ-PVM-Z3B3N PDF Specifications Sheet
Download VZ-PVM-Z3W3N PDF Specifications Sheet
Download 27" HD PVM User Manual
Screen Size | 27" |
Max Resolution | 1920 x 1080 @60Hz |
Pixel Pitch | 0.31125mm x 0.31125mm |
Brightness | 300cd/m²(Typical ) |
Contrast Ratio | 3000:1 |
Aspect Ratio | 16 : 9 |
Viewing Angle (H/V) | 178°/178° |
Display Color | 16.7 Million |
Response Time | < 12ms |
Video System | NTSC / PAL |
AV (Composite) In | 1 |
Camera (CVBS) Out | 1 / 720x480 |
Ethernet 10 / 100 | 1 |
RGB In (15pin D-Sub) | 1 |
HDMI In | 1 |
Audio In/Out | 1 / 1 |
Multi Display Function | PIP / PBP |
Filter Type | 3D Comb filter / De-Interlace |
Blinking Message "Recording" | Yes |
Timed Switching Capabilities | Yes |
between two cameras | |
Multi-Lingual Language | English, Spanish, French, Russian, Portuguese |
Outline Dimension | 25.07” x 17.93” x 2.17” |
(W x H x D) | 636.8mm x 455.60mm x 55.3mm |
Net Weight | 28.66 lbs ( 13.0 kg ) |
Gross Weight | 33.06 lbs ( 15.0 kg ) |
Vesa | 200mm x 200mm / M6 x L8 Screws |
100mm x 100mm / M4 x L10 Screws | |
Sensor Type | 1/3" SONY 2M Progressive C-MOS |
Lens | F1.3 Fixed Iris 2.7~12mm Vari-focal Lens |
Active Pixels | 1920(H) x 1080p(V) 30p |
Min Illumination | Color: 0.01Lux / B&W: 0.5Lux |
Color: DSS:0.017 Lux / BW DSS:0.0008 Lux | |
Function | 2D/3D NR, HLC/BLC, Defog, D/N, DWDR, AGC, AES, |
AWB, Privacy Masking (4 zone) | |
Video Out | 1ch CVBS (NTSC/PAL) |
Motion Detection | Support |
Support Type | Photo, Music, Video |
External Storage | Support SD/SDHC CARD, USB 2.0 HOST |
Output | VIDEO - HDMI(1080p) / AUDIO - L/R, HDMI |
Video File Format | RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, |
MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, | |
MPEG, TS, TP, M2TS, WMV, H.264, H.263,, | |
WMV9, VC-1, MPEG1/2/4 | |
Video Resolution | 1080P @60Hz |
Audio File Format | MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, |
AC-3, DTS, ATRA, WAV, PCM | |
Image File Format | JPEG, TIF, PNG, BMP |
VIDEO Play Control | AUTO, REPEAT, ZOOM, RESUME, TIME |
Transmitter - IR Remote Control | Yes | |
Dual Voltage | ||
Power - Electrical Ratings | 110V AC (50/60Hz) | 24V DC / 3A |
Power - Consumption | ≤ 46 W | |
Warranty - Parts / Labor | 3 Year / 3 Year | |
Operating Temperature | 32 - 104°F / 0 - 40°C | |
CRegulation | FCC(A), CE | |
Compatible Mounts - Wall | VZ-AM02, VZ-WM50 | |
Compatible Mounts - Ceiling | VZ-CMKiT-01, VZ-CMKiT-02 |
|
* Specifications subject to change without notice |
