    • 23” Mega Pixel Full HD 1080p Resolution
    • IPS Panel for Wider Viewing Angle - 178° / 178°
    • 2 MP Camera & DC Auto Iris 2.7-12 mm Vari-focal Lens
    • Blinking Message - "Recording in Progress"
    • Camera Motion Sensor & Time Interval Based Source Switching
    • Auto Power / Source Recovery
    • Supports Dual Voltage (110V AC and 24V DC)
Hover to zoom, click to view



Compatible Mounts

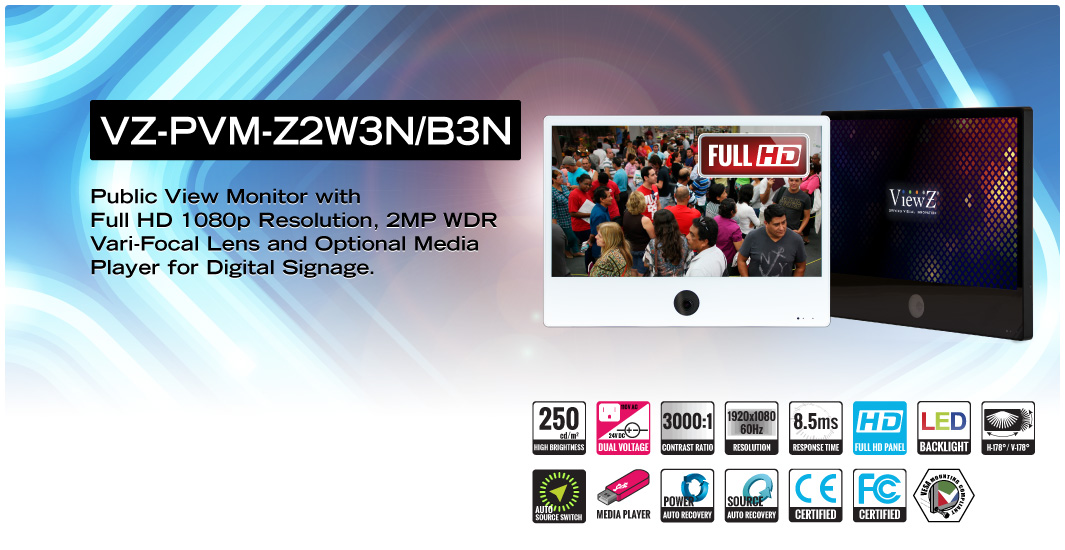

Model Number: VZ-PVM-Z2 _ _ N

23" Black Panel Widescreen LED "A" Commercial-Grade Monitor
Full HD 1920x1080 / 16:9
1920x1080 2 Mega Pixel HD D-WDR Camera
DC Auto Iris 2.7-12 mm Vari-focal Lens
720x480 Camera BNC Output

Motion Sensor and Time Interval based Source Switching
Alert Text / Multi-Color Blinking LED
HDMI In / VGA In / AV(Composite) In / Camera (CVBS) Out / Audio In-Out
3D Comb Filter / De-Interlace
Camera and Monitor OSD / Remote Control
PIP / PBP
Auto Source Switching
Auto Power & Source Recovery
VESA Wall Mount 100 x 100 / 200 x 200
AC 110~240V or DC 24V Dual Voltage
MTBF: 50,000 hrs
3-Year Warranty












Model Features

Family

 Series Size Color Voltage
32", Black, AC 110V / DC 24V VZ-PVM- Z 2 B 3 N
32", White, AC 110V / DC 24V VZ-PVM- Z 2 W 3 N


Series: Z (HD PVM) , I (IP PVM)

Size: 1 (10inch) , 2 (23inch) , 3 (27inch) , 4 (32inch)

Color: B (Black) , W (White)
Voltage: 1 (AC110V) , 2 (AC24V), 3 (AC110V / DC24V), 4 (PoE)











Download VZ-PVM-Z2B3N PDF Specifications Sheet

Download VZ-PVM-Z2W3N PDF Specifications Sheet

Download 23" HD PVM User Manual










  Screen Size 23"
  Max Resolution 1920 x 1080 @60Hz
  Pixel Pitch 0.2715mm x 0.2715mm
  Brightness 250cd/m²(Typical )
  Contrast Ratio 3000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178°/178°
  Display Color 16.7 Million
  Response Time < 20ms
  Video System NTSC / PAL


  AV (Composite) In 1
  Camera (CVBS) Out 1 / 720x480
  RGB In (15pin D-Sub) 1
  HDMI In 1
  Audio In/Out 1 / 1


  Multi Display Function PIP / PBP
  Filter Type 3D Comb filter / De-Interlace
  Blinking Message "Recording" Yes
  Timed Switching Capabilities Yes
  between two cameras
  Multi-Lingual Language English, Spanish, French, Russian, Portuguese


  Outline Dimension 21.71” x 16.05” x 2.17”
  (W x H x D) 551.6mm x 407.90mm x 55.3mm
  Net Weight 22.04 lbs ( 10.00 kg )
  Gross Weight 29.76 lbs ( 13.5 kg )


  Vesa 200mm x 200mm / M6 x L10 Screws
  100mm x 100mm / M4 x L8 Screws


  Sensor Type 1/3" SONY 2M Progressive C-MOS
  Lens F1.3 Fixed Iris 2.7~12mm Vari-focal Lens
  Active Pixels 1920(H) x 1080p(V) 30p
  Min Illumination Color: 0.01Lux / B&W: 0.5Lux
  Color: DSS:0.017 Lux / BW DSS:0.0008 Lux
  Function 2D/3D NR, HLC/BLC, Defog, D/N, DWDR, AGC, AES,
  AWB, Privacy Masking (4 zone)
  Video Out 1ch CVBS (NTSC/PAL)
  Motion Detection Support

  Support Type Photo, Music, Video
  External Storage Support SD/SDHC CARD, USB 2.0 HOST
  Output VIDEO - HDMI(1080p) / AUDIO - L/R, HDMI
  Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV,
  MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT,
  MPEG, TS, TP, M2TS, WMV, H.264, H.263,,
  WMV9, VC-1, MPEG1/2/4
  Video Resolution 1080P @60Hz
  Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE,
  AC-3, DTS, ATRA, WAV, PCM
  Image File Format JPEG, TIF, PNG, BMP
  VIDEO Play Control AUTO, REPEAT, ZOOM, RESUME, TIME


  Transmitter - IR Remote Control Yes
  Dual Voltage
  Power - Electrical Ratings 110V AC (50/60Hz) 24V DC / 2A
  Power - Consumption ≤ 36 W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / 0 - 40°C
  CRegulation FCC(A), CE
  Compatible Mounts - Wall VZ-AM02, VZ-WM50
  Compatible Mounts - Ceiling
VZ-CMKiT-01, VZ-CMKiT-02





  * Specifications subject to change without notice
