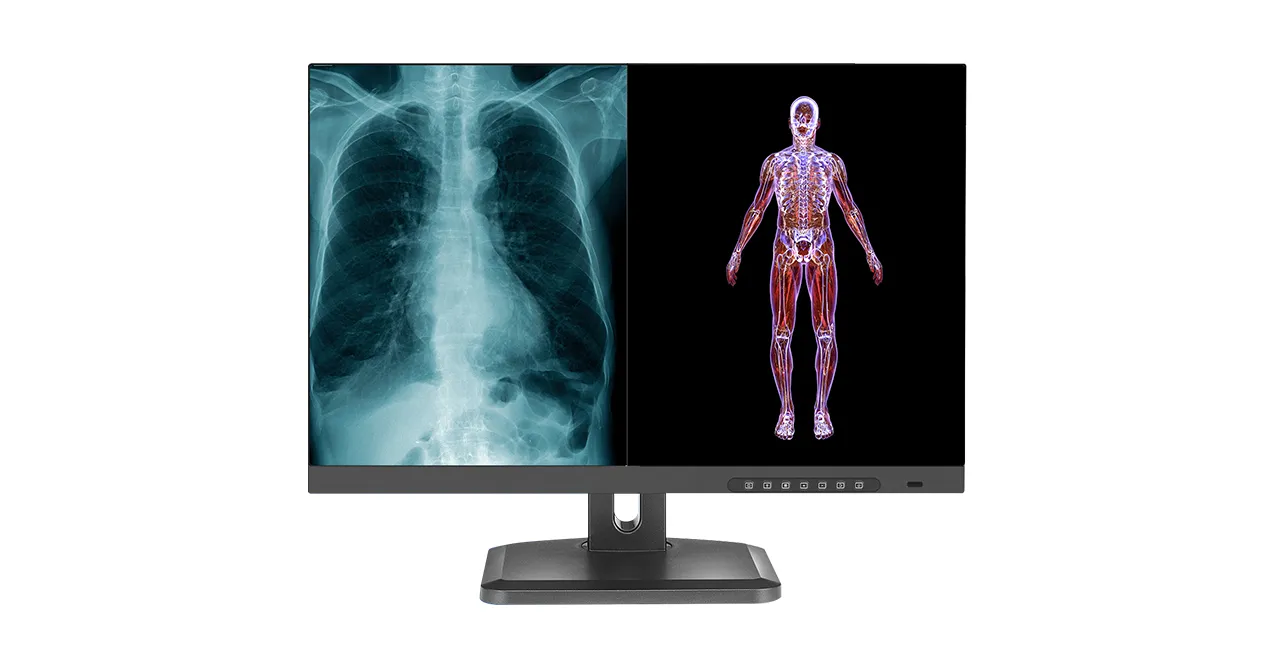

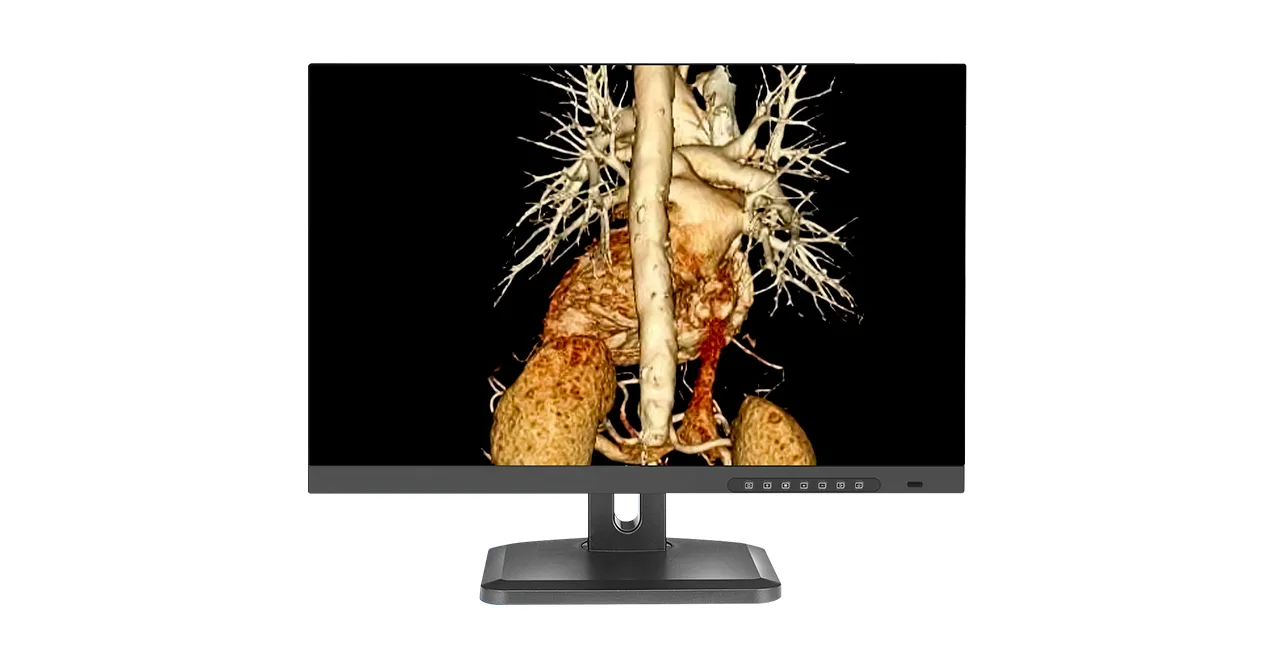

VZ-27MPAC
Medical display combines unique LCD panel with update IPS technology, provide top image quality. Its high brightness and contrast is beneficial to show the details, ensure the radiologist make more accurate diagnosis.
- 2560 x 1440 @60Hz Resolution
- DVI, DP, HDMI
- Accurate Image Quality
- Seamless Dual Screen – PBP
- Ambient Light Sensing System
- Super Wide Viewing Angle
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Specification | Dimension | Spec & Manual
Series : MPAC | Key Features : PACS Integrated Monitor
Product Features
- Model Number: VZ-27MPAC
- 27″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Ambient Light Sensing System
- High Resolution Improve the Working Flow
- Accurate Image Quality
- Seamless Dual Screen – PBP
- 2K (2560×1440)
- DVI / DP / HDMI
- Auto Source & Power Recovery
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Display
| Screen Size | 27″ |
| Max Resolution | 2560 x 1440 @60Hz |
| Pixel Pitch | 0.2331 mm x 0.2331 mm |
| Brightness | 500 cd/m²(Typical) |
| Contrast Ratio | 1000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Response Time | < 14 ms |
Interface
| DVI In | 1 |
| DP In | 1 |
| HDMI In | 3 |
Special Features
| PBP | Support |
| Display Surface Treatment | ANTI-Dazzle |
Dimensions & Weight
| Outline Dimension (W x H x D) | TBD |
| Net Weight | TBD |
General Summary
| Transmitter – IR Remote Control | Yes |
| Power – Electrical Ratings | TBD |
| Power – Consumption | ≤ 50 w |
| Regulations | FCC(A), CE, RoHs |
| Operating Temperature | Humidity | 14°F ~ 122°F / -10°C ~ 50°C | 5 ~ 90% RH |
