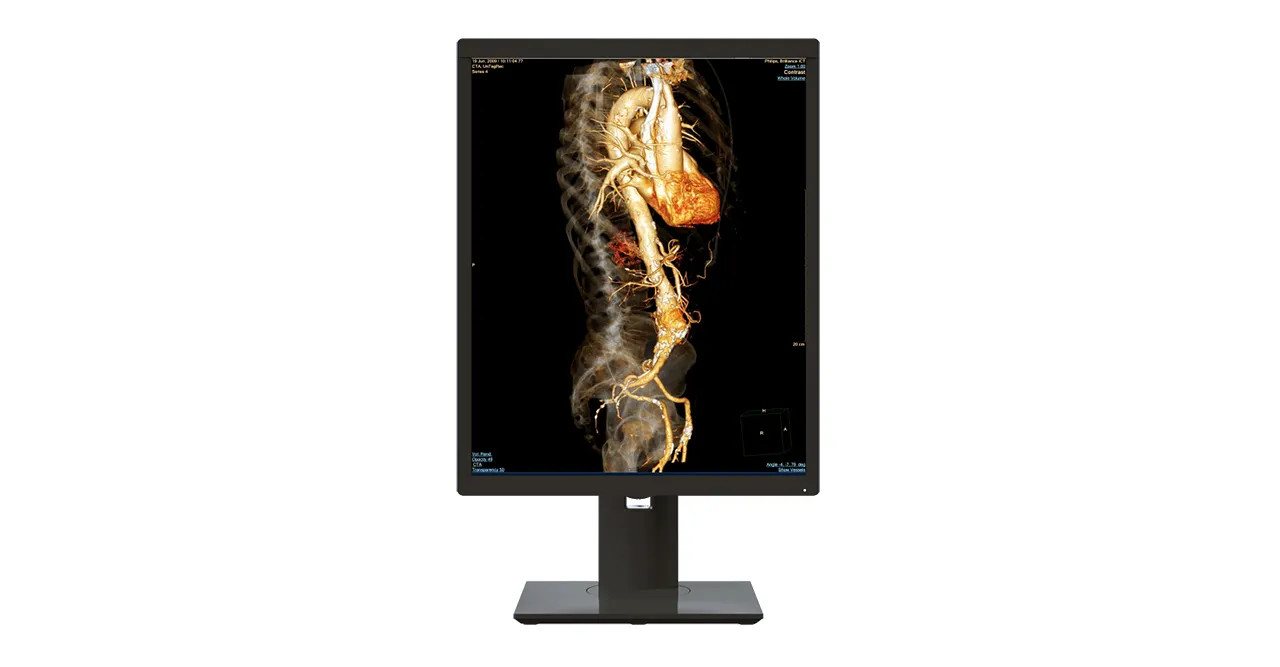

VZ-22MDM-5C-HB
VZ-22MDM-5C-HB is a high performance 5MP professional medical color display with advanced display technology designed for use in medical environments. With its smooth grey level, high brightness and high resolution, this display creates precisely saturated images to help you achieve the best diagnosis for your patients.
- 5MP Color Diagnostic Display – 2560 x 2048 @60Hz Re

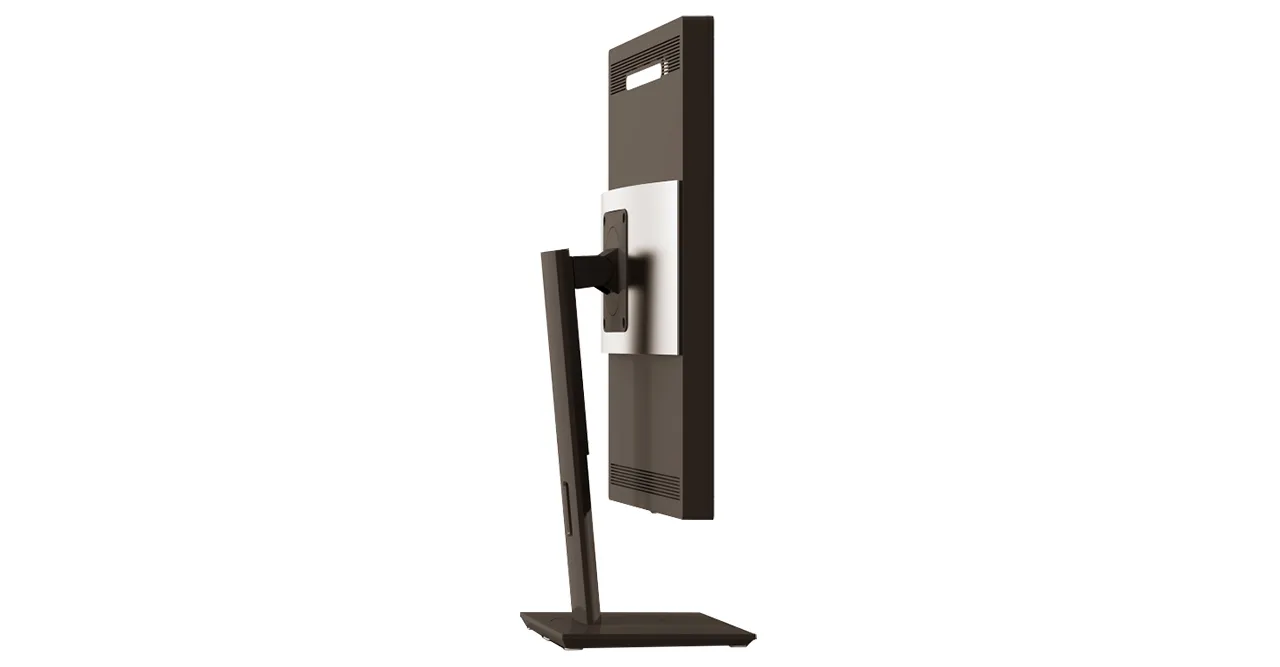

- Multi-Angle Free Conversion (Vertical / Horizontal)
- HDMI & DP
- Built-in Retractable Brightness Calibrator
- Excellent Gamma Curve Correction
- Low Blue-Light Technology
- CE, CCC & Reach Listed
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Specification | Dimension | Spec & Manual
Series : MDM | Key Features : Diagnostic Display
Product Features
- Model Number: VZ-22MDM-5C-HB
- 21.3″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- 5MP Color Diagnostic Display – 2560 x 2048 @60Hz Resolution
- Multi-Angle Free Conversion (Vertical / Horizontal)
- Accurate Imaging Quality & Precise Diagnosis
- Built-in Retractable Brightness Calibrator
- Excellent Gamma Curve Correction
- CE, CCC & Reach Listed
- Low Blue-Light Technology
- Auto Source & Power Recovery
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Display
Screen Size | 21.3″ |
Max Resolution | 2560 x 2048 @60Hz |
Pixel Pitch | 0.165 mm x 0.165 mm |
Brightness | 1300 cd/m² (Typical) / 500 cd/m² (Calibrated) |
Contrast Ratio | 2000 : 1 |
Aspect Ratio | 16 : 9 |
Viewing Angle (H/V) | 178°/178° |
Display Color | 16.7 Million |
LUT | 48 bit |
Response Time | < 25 ms |
Interface
HDMI In | 1 |
DP In | 2 |
USB In | 1 |
Special Features
Gamma | Linear, GAMMA 1.8 / 2.0 / 2.2 / 2.4, CRT, DICOM 1 / 2, DSA, DSI |
Display Surface Treatment | AG |
Dimensions & Weight
Outline Dimension (W x H x D) | 14.33 x 18.21 x 2.33” / 366.7 x 462.6 x 59.33 mm |
Net Weight (with Stand) | 6.3 kg / 13.88 lbs |
Gross Weight | 8 lbs / 17.63 kg |
General Summary
Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC Adaptor) – DC 24V, 5A (Power Factor: PF0.90) |
Power – Consumption | ≤ 60 W / ≤ 1.5 W (Standby) |
Regulations | FCC(A), CE, CCC, Reach, RoHs |
Operating Temperature | -4 ~ 140°F / -20 ~ 60°C |
Operating Humidity | 0 ~ 90% RH (non-condensing) |
Storage Temperature | 32 ~ 122°F / 0 ~ 50°C |
Storage Humidity | 20 ~ 85% RH (non-condensing) |
