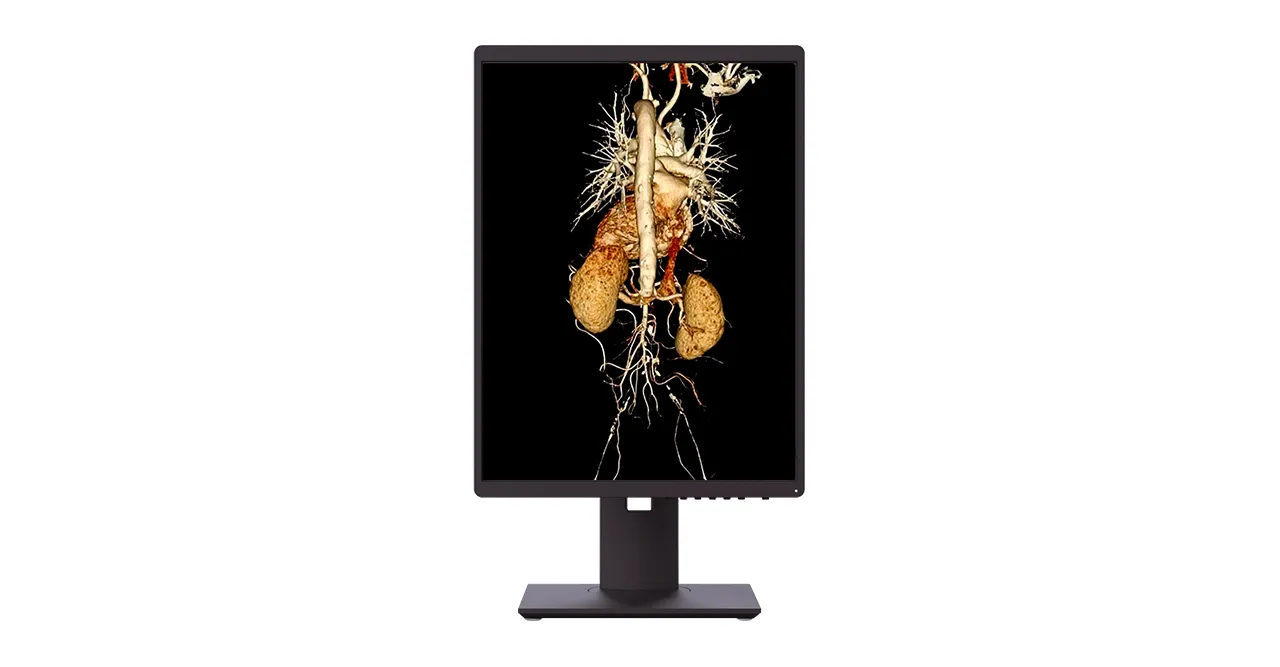

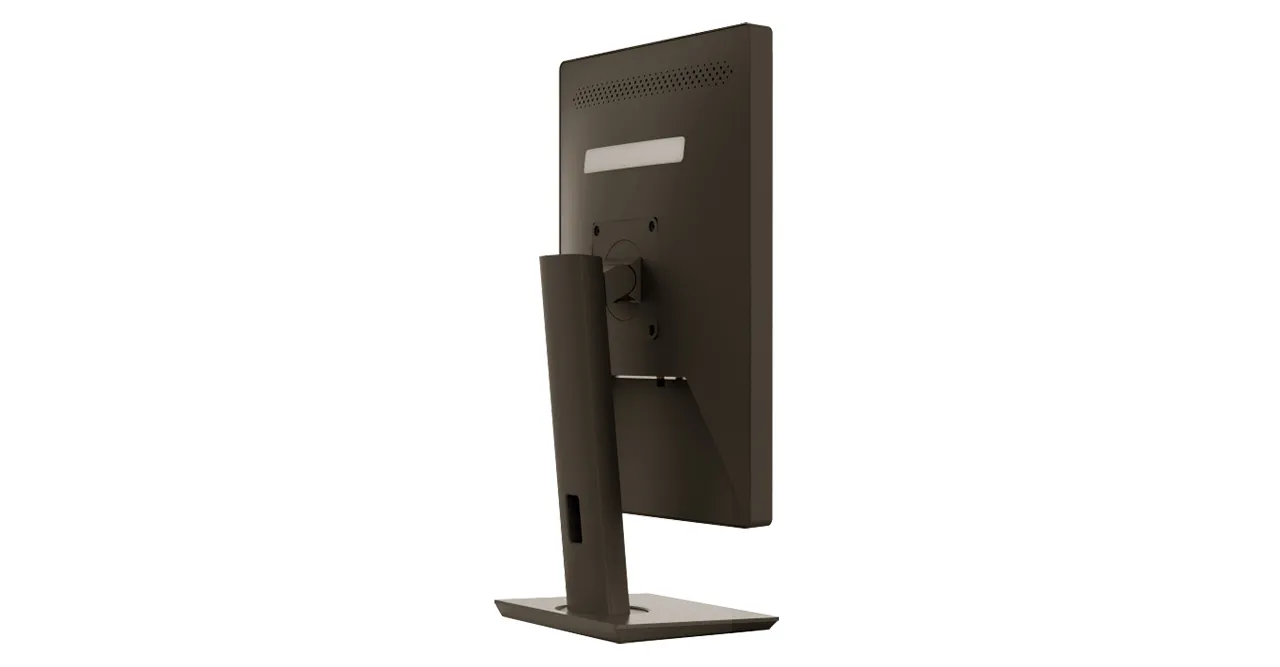

VZ-22MDM-3C-HB
VZ-22MDM-3C-HB is a 3MP professional medical color display with excellent picture quality to meet the display needs of various viewing environments. VZ-22MDM-3C-HB monitor can maintain optimal brightness for a long time, display detailed images accurately, and adapt to diagnostical needs in complex environments.
- 3MP Color Diagnostic Display – 2048 x 1536 @60Hz Re
- Multi-Angle Free Conversion (Vertical / Horizontal)
- HDMI & DP
- Accurate Image Quality & Precise Diagnosis
- Environment Adaption
- Low Blue-Light Technology
- CE, CCC & Reach Listed
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Specification | Dimension | Spec & Manual
Series : MDM | Key Features : Diagnostic Display
Product Features
- Model Number: VZ-22MDM-3C-HB
- 21.3″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
- Precise Diagnosis
- Multi-Angle Free Conversion (Vertical / Horizontal)
- Accurate Imaging Quality
- Environment Adaption
- Low Blue-Light Technology
- CE, CCC & Reach Listed
- 2048 x 1536 @60Hz
- HDMI & DP
- Auto Source & Power Recovery
- Built to run 24/7/365
- Factory Lifetime Limited Warranty
Display
| Screen Size | 21.3″ |
| Max Resolution | 2048 x 1536 @60Hz |
| Pixel Pitch | 0.2115 mm x 0.2115 mm |
| Brightness | 1100 cd/m² (Typical) / 500 cd/m² (Calibrated) |
| Contrast Ratio | 2000 : 1 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle (H/V) | 178°/178° |
| Display Color | 16.7 Million |
| Gray Scale | 10 bit |
| LUT | 16 bit |
| Response Time | < 25 ms |
Interface
| HDMI In | 1 |
| DP In | 2 |
Special Features
| Gamma | Linear, GAMMA 1 / 2 / 3 / 4, CRT, DICOM 1 / 2, DSA, DSI, MRI/CT |
| Display Surface Treatment | AG |
Dimensions & Weight
| Outline Dimension (W x H x D) | 13.55 x 22.65 x 6.81” / 344.3 x 575.43 x 173 mm |
| Net Weight (with Stand) | TBD |
General Summary
| Power – Electrical Ratings | AC 100-240V, 50/60Hz (with DC Adaptor) – DC 24V, 5A (Power Factor: PF0.90) |
| Power – Consumption | ≤ 50 W / ≤ 1.5 W (Standby) |
| Regulations | FCC(A), CE, CCC, Reach, RoHs |
| Operating Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 10 ~ 90% RH (non-condensing) |
