  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 7” IPS with 1280 x 800 Resolution
    • Onvif & Hybrid (AHD, TVI, CVI, HD/EX-SDI, CVBS) Support
    • Supports IP (DHCP, manual IP Setup), IPC, IPC Viewer,
       Rapid Video, RTSP, IP Discovery, RJ45 TDR Test
    • Wifi Connection & Touch Screen
    • P.o.E. Test - PD & PSE
    • Supports Analog Video Test with NTSC/PAL - 1V Peak to Peak
    • Support RS485 (Pelco PTZ Control)
Hover to zoom, click to view
Scroll to learn more

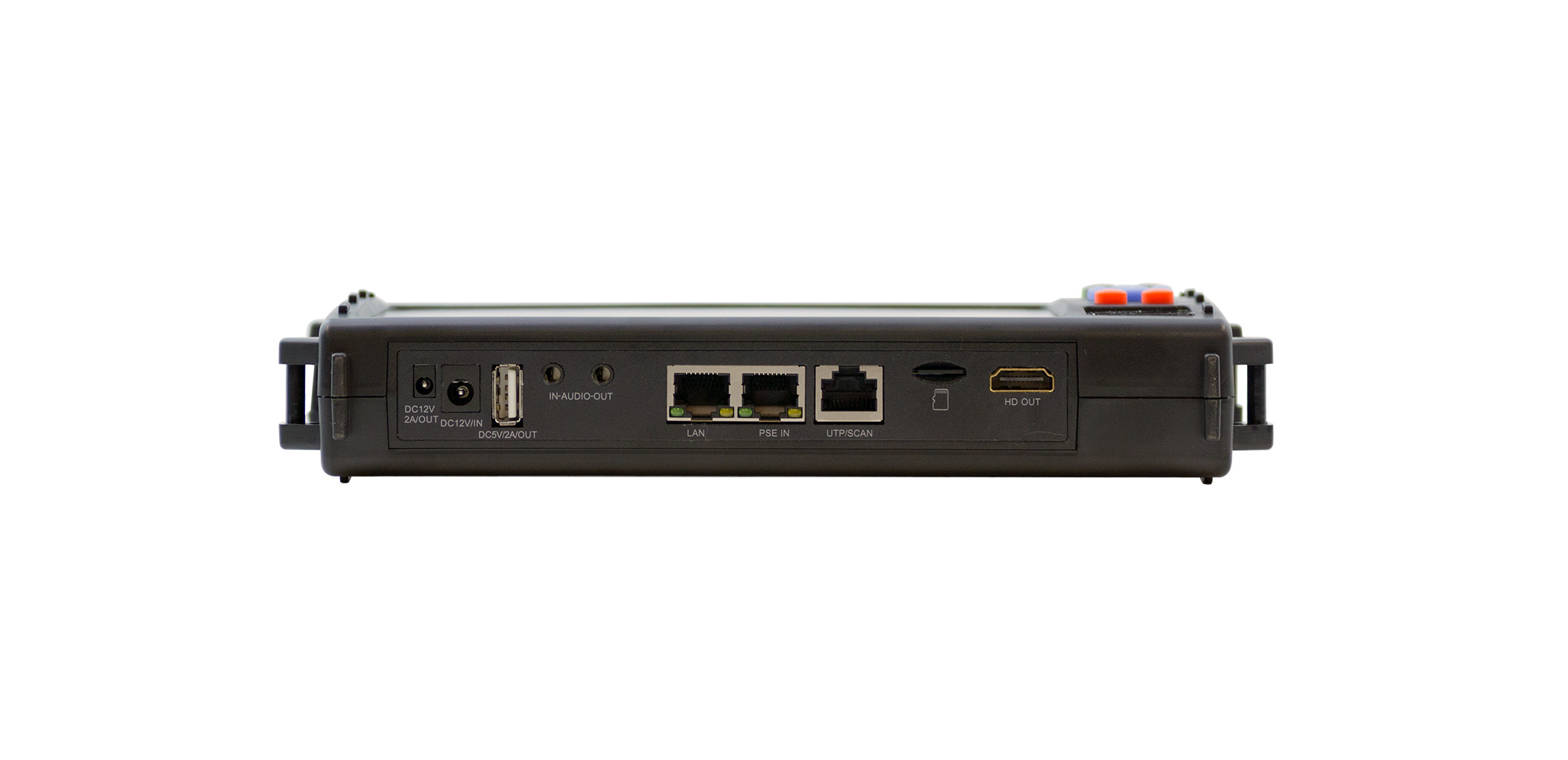

If PoE powered device is connected to Ethernet port 1 (Blue port), 12V DC output will be disabled.

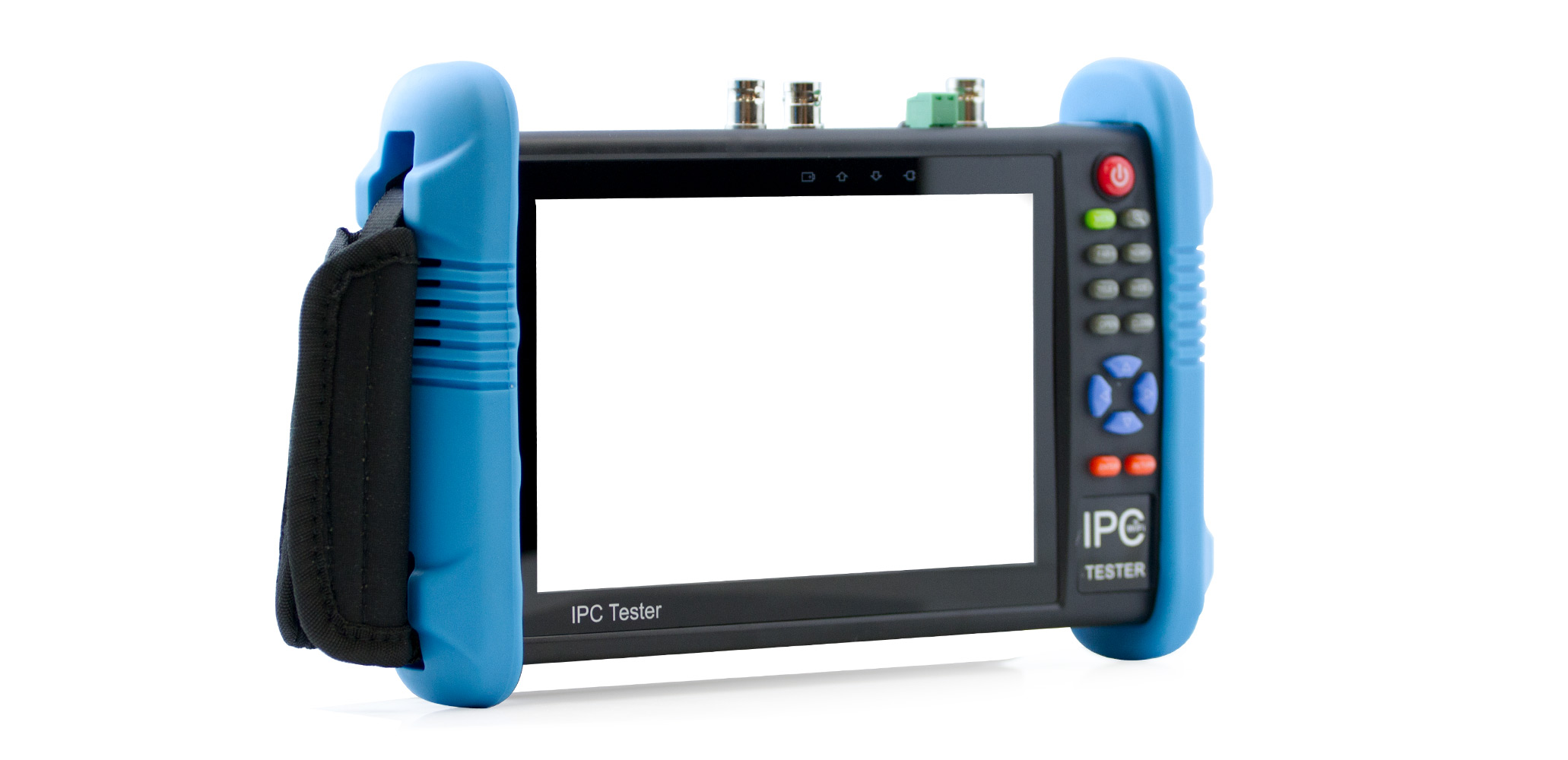

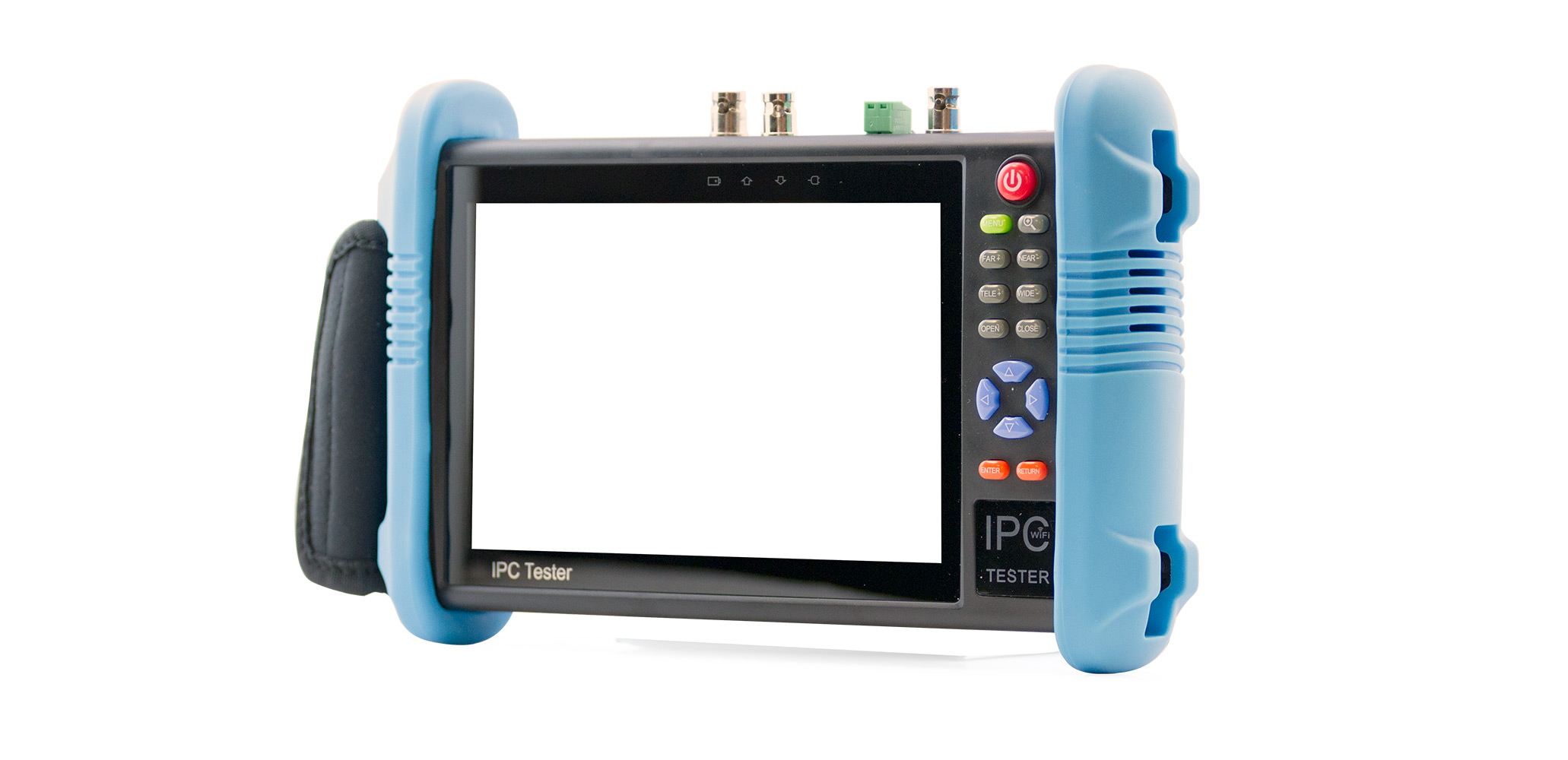

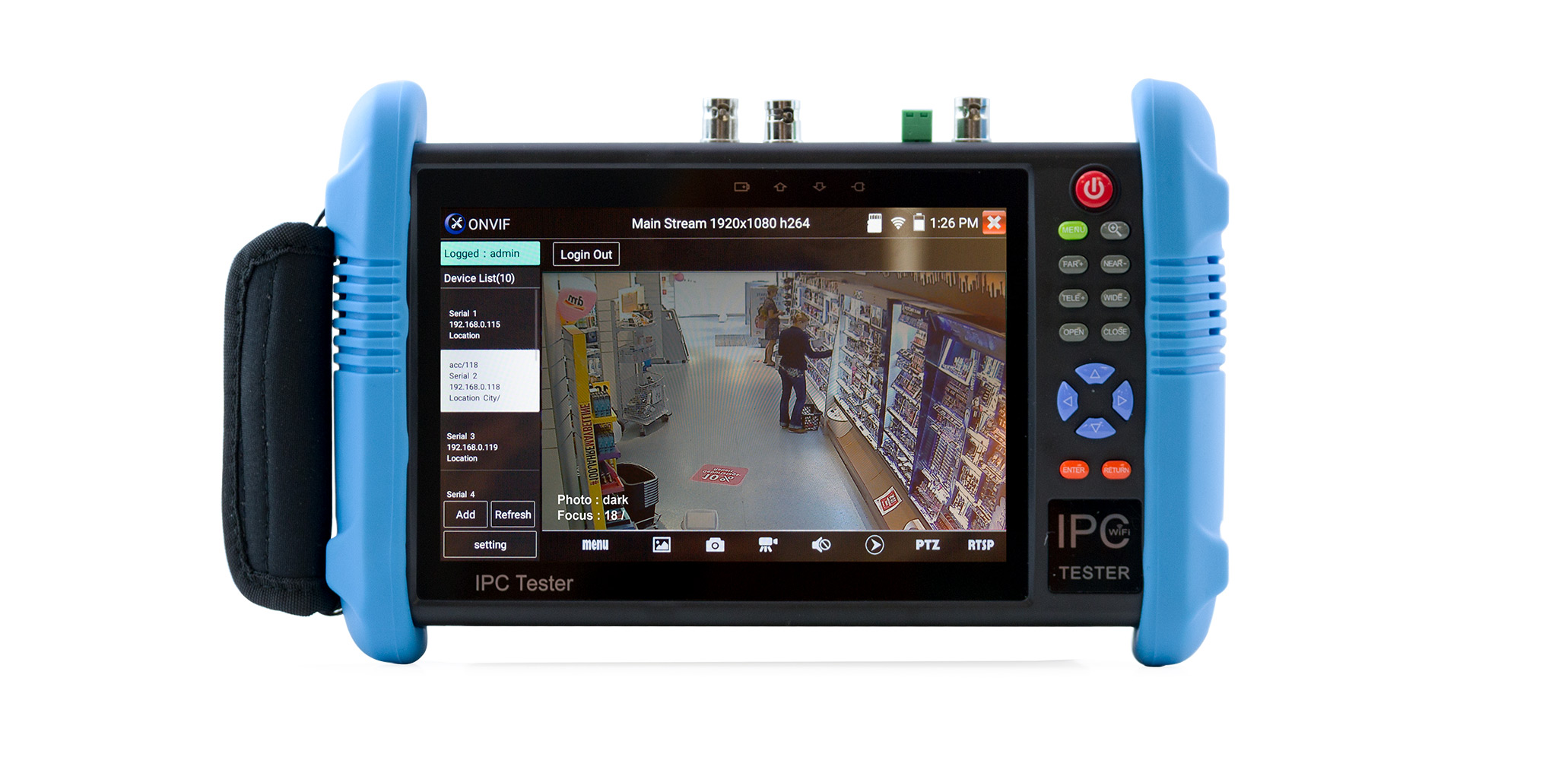

Model Number: VZ-7IPTM

7” IPS with 1280 x 800 Resolution
Wifi Connection & Touch Screen
H.265, H.264 and 4K Support
Hybrid - 5MP TVI, 4MP CVI, 4MP AHD & HD-SDI/EX-SDI Test
Support Analog (CVBS) Video Test with NTSC/PAL, CVBS Loop Test
Onvif, IP (DHCP, manual IP Setup), IPC, IPC Viewer, Rapid Video, RTSP, IP Discovery, RJ45 TDR Test
Support Ethernet 10/100/1000 Connection and Packet Loss Test
Video Streaming Record, Playback & Screen Shot (built-in 8GB Micro SD)
Color Bar Generator
P.o.E. Test - PD & PSE
Provides the Ability to Troubleshoot Camera Viewing angle, Focus, Zoom, and Display Setting on Installation Site
Support RS485 (Pelco PTZ Control)
Portability, PoE and DC12V 2A Power Out
High Capacity Power with Lithium Battery (10 hours)









Download VZ-7IPTM PDF Specifications Sheet
















  Screen Size 7"
  Max Resolution 1280 x 800 @60Hz
  Aspect Ratio 16 : 10
  Display Color 16.7 Million
  Viewing Angle (H/V) 178°/178°


  HD / EX-SDI 1
  AHD/TVI/CVI/CVBS In 1
  CVBS Out 1
  HDMI In / Out 1 / 1
  RS485 (PTZ Control) 1
  Micro SD In 1
  Audio In / Out 1 / 1
  Ethernet 10/100/1000 with P.o.E. In / Out 1 / 1
  UTP 1
  DC 5V (2A) Out - USB Type 1
  DC 12V (2A) In / Out 1 / 2


  POE test PD & PSE test
  Color Bar Generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
  Record Playback Support local playback
  Network Analyze Trace route, Link monitor , DHCP server, port flashing , Ping test
  Camera Power Out 12V DC
  Multi Language English, Chinese, Korean, Russian, Italian, French, Polish, Spainish, Japanese

  Protocol ONVIF, RTSP, RTP
  Ethernet test IPC test / IPC viewer / Rapid video / RTSP /ONVIF
  ONVIF camera Test Support 2592*1520, Network PTZ controller (ONVIF)
  Rapid Video Auto view the video, create testing report
  IP& CVBS Test At the same time ,converter test from analog to digital with dual test window name, password and IP parameters
  Traffic monitoring Traffic monitoring of the tester “LAN port”, display network port or WIFI connection real-time upload and download speeds and other network parameters

  PD/PSE test Measurement POE switch or PSE power supply voltage and cable connection status

  Communication interface RS485
  Communication protocol PELCO-D/P, Samsung,Panasonic and over 30 Protocols
  Baud rate 600-115200bps

  Audio Test 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

  TVI 5MP TVI camera test, 2560x1944p 12.5FPS, UTC control/ call OSD menu
  CVI 4MP CVI camera test, 2560x1440p 25F/30F, UTC control d call OSD menu
  AHD 4MP AHD test, 2560x1440P 15F/25F/30F, UTC control d call OSDmenu
  HD SDI/EX-SDI HD SDI/EX-SDI camera test, support 1080P 50/60 FPS
  CVBS 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt)
  CVBS loop test The tester send and receive color bar generator signal, check BNC cable

  (W x H x D) inch 9.44” x 6.06” x 1.81”
  (W x H x D) mm 240 mm x 154 mm × 46 mm
  Net / Gross Weight 1.36 lbs ( 620g ) / 1.43 lbs ( 650g )


  Battery - Capacity 7.4V
  Battery - Type Replaceable Lithium Polymer Battery
  Battery - Operation Time 10 Hours
  Operating Temperature 14 ~ 122°F / -10 ~ 50°C
  Storage Temperature -4 ~ 158°F / -20 ~ 70°C
  P.o.E. Injector PoE Power Injector - 48V/15W Output
  Power Charging DC 12V
  Full Charging Time - 5 to 6 Hours
  Power Saving Mode Working, Standby & Shutdown
  Automatic Standby Adjustable Time Internval - 5 to 30 Minutes
  Warranty - Parts / Labor 2 Year / 2 Year
  Regulation CE, FCC
  Operation Power Button, Surface Buttons and Touch Screen
  Package Include VZ-70ISM x 1, US 12v DC Charger x 1, Carrying Strap x 3, BNC to BNC Cable x 1, Audio Tester Lead x 1, RJ45 Cable Tester x 1, RS485 Cable Test Lead x 1, Carrying Bag x 1, 12V Power Output Cable x1, User Manual x 1





  * Specifications subject to change without notice
