    • 10” Mega Pixel IP Public View Monitor
    • Onvif Compliant (Fully Compatible with VMS ) - Profile S
    • Built in 2 Mega Pixel Camera / Pinhole Lens
    • Blinking Message "Recording"
    • Video Obstruction Alarm / Video Loss Alarm / Door Open Alarm /
       Power Loss Alarm
    • Camera Motion Sensor & Time Interval Based Source Switching
    • Powered by PoE
Hover to zoom, click to view

Alarm Application

PVM Case Application

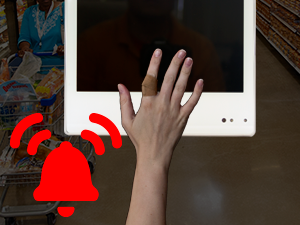

Video Obstruction
Alarm Application

10" IP Public View Monitor

Video Obstruction

PVM Case Application

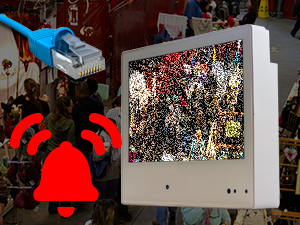

Video Loss
Alarm Application

10" IP Public View Monitor

Video Loss

PVM Case Application

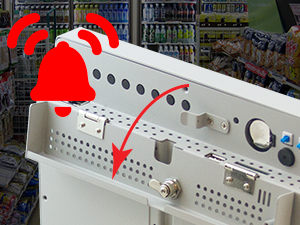

Door Open
Alarm Application

10" IP Public View Monitor

Door Open

PVM Case Application

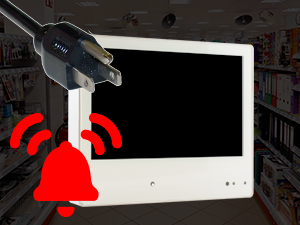

Power Loss
Alarm Application

10" IP Public View Monitor

Power Loss



Compatible PoE Injector & Mounts

Model Number: VZ-PVM-I1W4N

Enhanced Public View Monitor over IP

10" Flat Panel Widescreen LED "A" Commercial-Grade Monitor
Powered by PoE
HD 1280x800 / 16:9
1080p Pinhole 2.1 Mega Pixel HD WDR Camera
Camera Motion Sensor & Time Interval Based Source Switching between IP Camera and Media Player
Flexible Alert Text / Multi-Color Blinking LED
Camera and Monitor OSD / Remote Control
Video Obstruction Alarm / Video Loss Alarm / Door Open Alarm /
Power Loss Alarm
Auto Power/Source Recovery
VESA Wall Mount 75x75
PoE 30W
3-Year Warranty



















Download VZ IP-PVM Onvif Compliant VMS List

Download VZ-PVM-I1W4N PDF Specifications Sheet

Download VZ-PVM-I1W4N Manual
















  Screen Size 10"
  Max Resolution 1280 x 800 @60Hz
  Pixel Pitch 0.1695 mm x 0.1695mm
  Brightness 250cd/m²(Typical )
  Contrast Ratio 700:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 140°/130°
  Display Color 16.7 Million
  Response Time < 30ms


  RJ-45 for iP Camera & Power 1
  USB / SD Card In (Media Player) 1 / 1


  Blinking Message "Recording" Yes
  Timed Switching Capabilities Yes
  between IP Cam & Media Player
  PoE Support Yes
  Keylock Yes
  Multi-Lingual Language English, Spanish, French, Russian,,
Portuguese,


  Ethernet Interface 10/100Base-T
  Web Client Protocol TCP / IP
  Supported Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP support


  Outline Dimension 9.88” x 8.42” x 1.65”
  (W x H x D) 251.2 x 211.2 x 42.1 mm
  Net Weight / Gross Weight 4.62 lbs ( 2.1 kg ) /7.05 lbs ( 3.2 kg )


  Vesa 75mm x 75mm / M4 x L8 Screws


  Sensor Type 1/3" 2.1M SONY IMX290 / Hi3516D
  Lens 3.7 Fixed Pinhole Lens
  Active Pixels 1920(H) x 1080p(V) 30fps
  Min Illumination Color: 0.001Lux@ (F1.2, AGC ON) /
B&W: 0.0001Lux@(F1.2, AGC ON)
  Function 2D/3D NR, D-ZOOM, DPC, HLC/BLC, Defog, D/N, DWDR, AGC, AWB
  Video Compression H.265, H.264, MJPEG CBR, VBR support
  Video Out 1ch RJ-45 output
  Motion Detection Support
  Support Protocol TCP/IP, UDP, SMTP, HTTP, FTP, PPPOE, DHCP, DNS, DDNS, UPNP, RTP, RTSP
  Ethernet Port 10 / 100 Base-T
  Webclient Connection TCP / IP Protocol

  Support Type Photo, Music, Video
  External Storage Support SD CARD (Max.64GB), USB (2TB)
  Video File Format RM, RMVB, AVI, DVIX, MKV, MOV, HDMOV, MP4, M4V, PMP, AVC, FLV, VOB, MPG, DAT, MPEG, TS, TP, M2TS, WMV, H.264, H.263, WMV9, VC-1, MPEG1/2/4
  Video Resolution 1080P @60Hz
  Audio File Format MPEG1/2/4, MP3, WMA, OGG, AAC, FLAC, APE, AC-3, DTS, ATRA, WAV, PCM
  Image File Format JPEG, TIF, PNG, BMP


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings P.o.E.
  Power - Consumption 24W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 32 - 104°F / -10 - 50°C
  Compatible Mounts - Wall VZ-WM05, VZ-WM11, VZ-AM01





  * Specifications subject to change without notice
