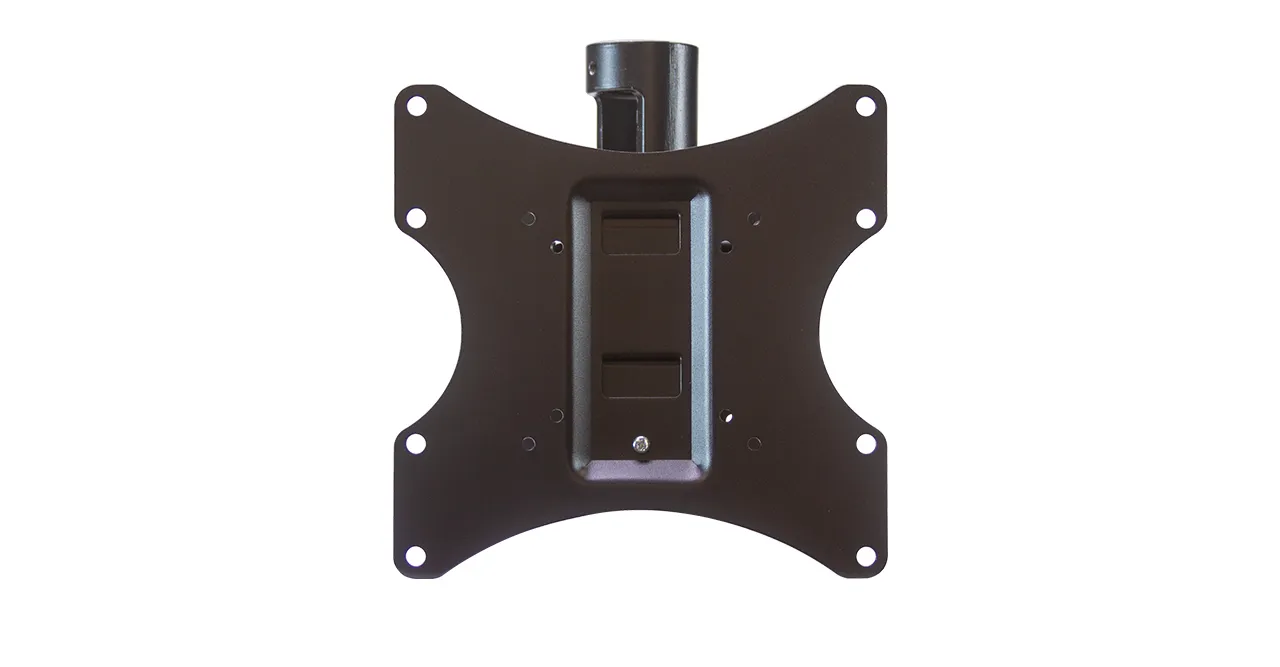

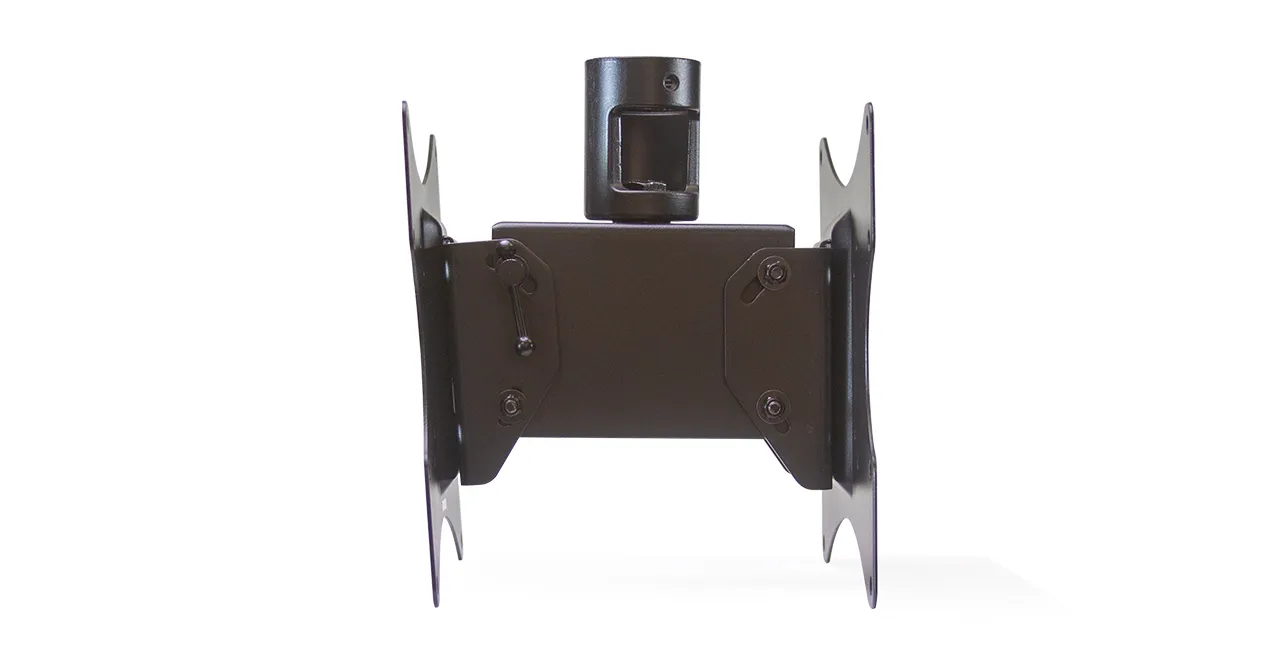

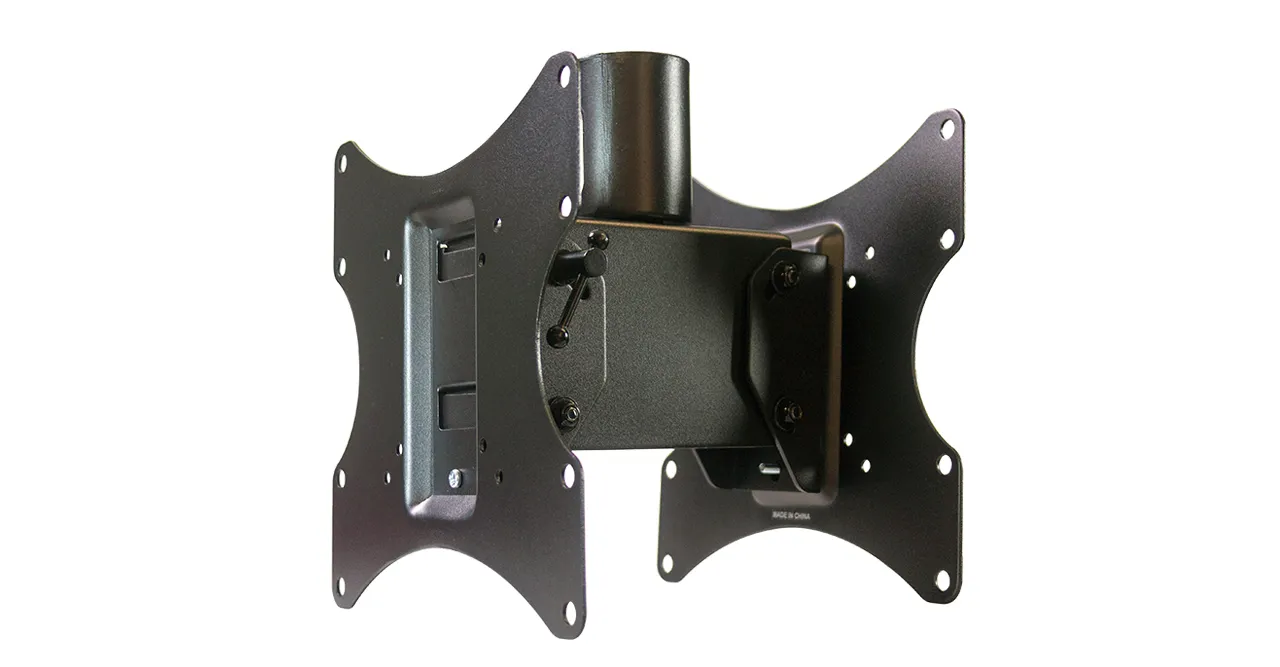

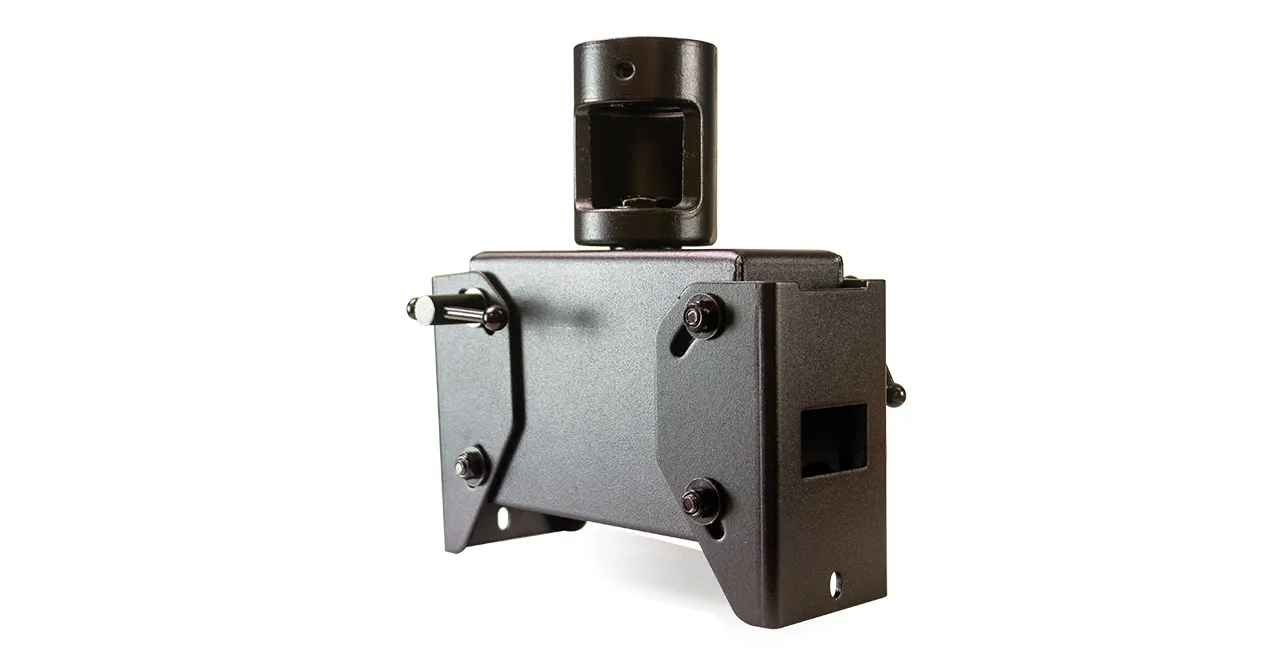

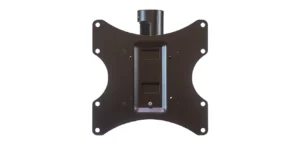

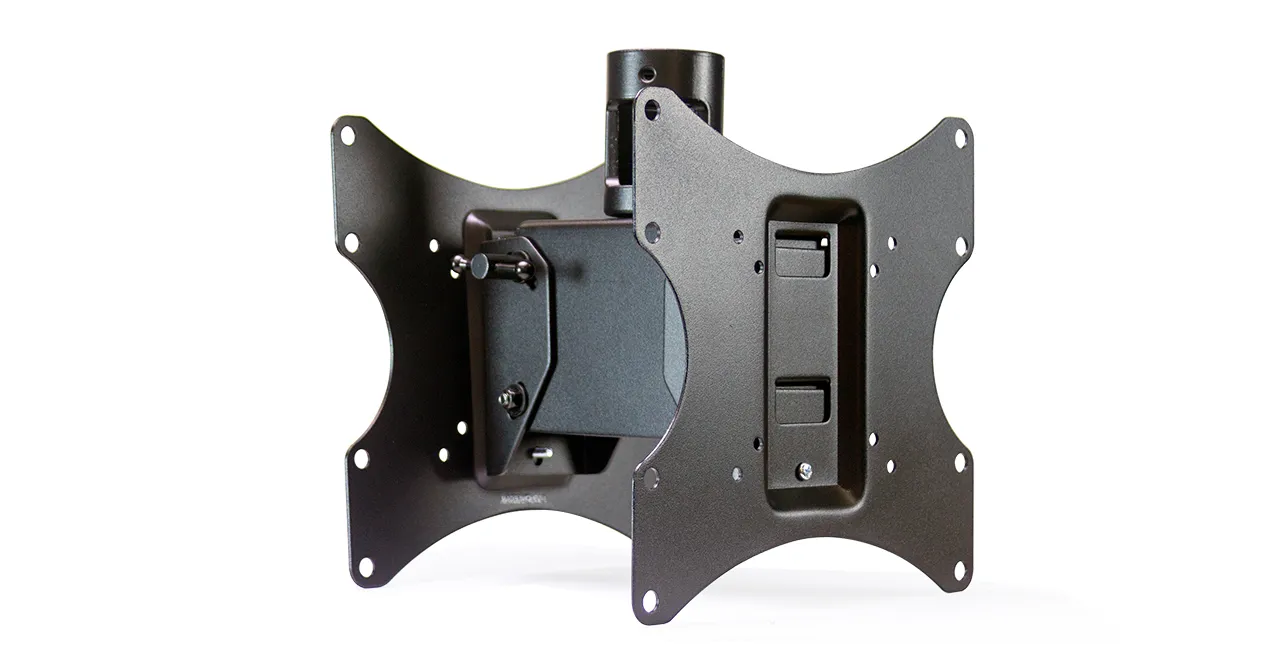

VZ-CM-V2
BACK to BACK DUAL Vesa Ceiling Mount Head for 24” to 43” ViewZ Commercial Grade Monitors
- Mounting head for 24″~43″ CCTV & Video Wall Monitors
- Load Capacity is 110 lbs / 50 kg
- -12° ~ +5° tilt, 360° Pan Rotation for Achieving that Perfect Viewing Angle
- VESA compliant: 75×75, 100×100, 200×100, 200×200
- Easy Cable Management
- Pole Option : VZ-CM-P36 (35.5″) and VZ-CM-P15 (8.7″ ~ 14.55″)
Specification | Dimension | Spec & Manual
Series : Ceiling Mount | Key Features : Compatible for 23-32″ VESA Mounting Head
Designed specifically for
Product Features
- Model Number: VZ-CM-V2
- Mounting Head for 24″ to 43″ CCTV & Video Wall Monitors
- Load Capacity is 110 lbs / 50 kg
- 5° Tilt Up and 12° Tilt Down Adjustment along with 360° Pan Rotation or Achieving that Perfect Viewing Angle
- VESA Standard – 75×75, 100×100, 200×100 and 200×200
- Easy Cable Management
- Pole Option : VZ-CM-P36 (35.5″) and VZ-CM-P15 (8.7″ ~ 14.55″)
Specification
| Total Weight Capacity | 110 lbs / 50 kg |
| Display Range | 24″ ~ 43″ |
| PAN Rotation (Swivel) | ± 180° (360°) |
| Tilt Capability | +5° ~ – 12° |
| Mounting Patterns Type | VESA |
| Mounting Patterns | 75×75, 100×100, 200×100, 200×200 |
Dimensions & Weight
| Outline Dimension (W x H x D) | 7.6” x 7.8” x 9.2” / 195 mm x 200 mm x 236 mm |
| Net Weight | 8 lbs / 3.62 kg |
Product Dimension & Weight
Click below to enlarge
