24″ Surgical Display

product Description

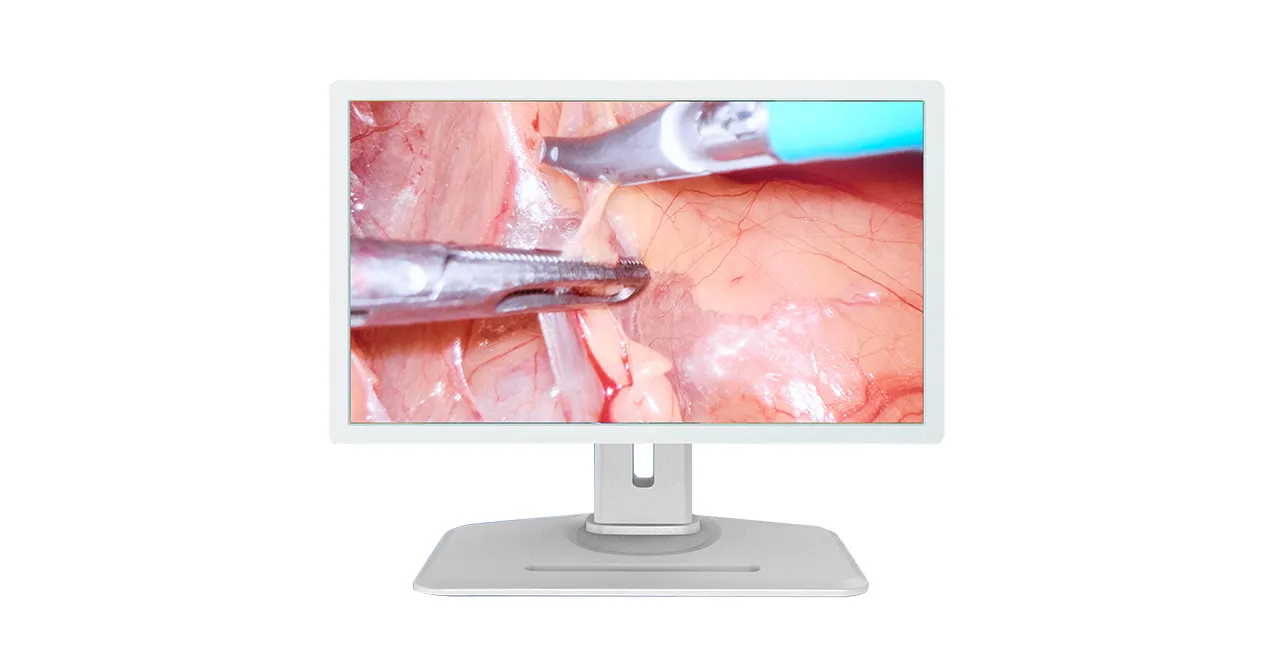

vz24msd1

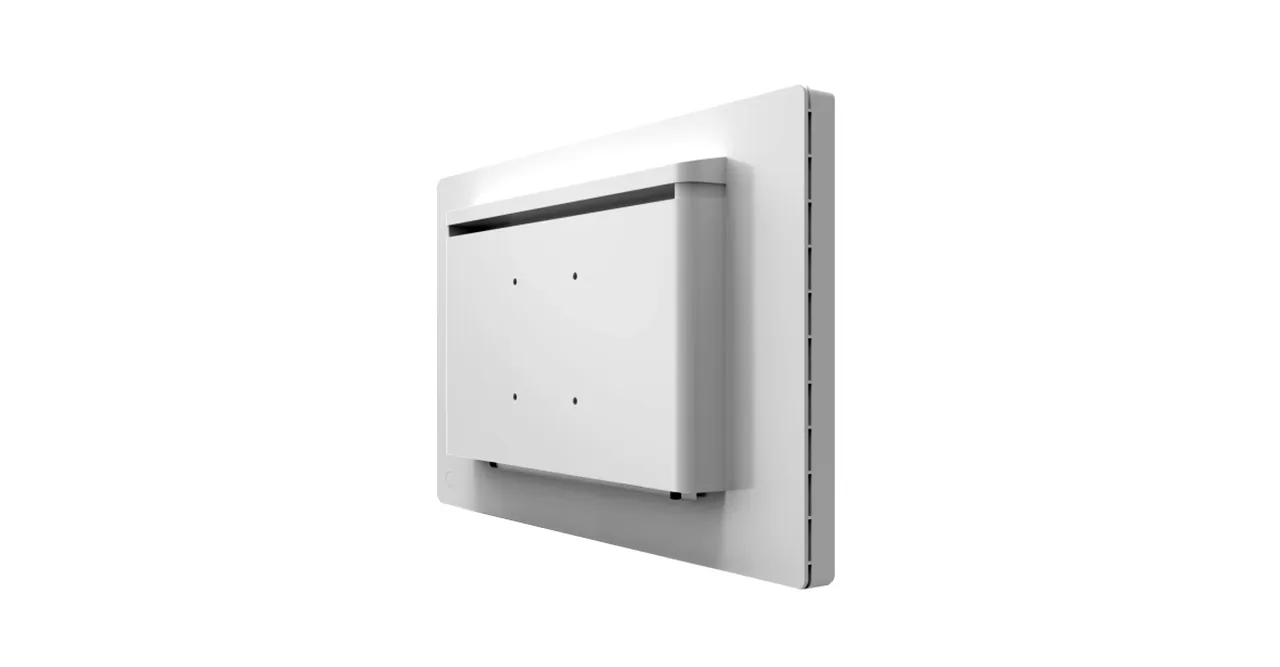

vz24msd2
vz24msd1 vz24msd2

VZ-24MSD

VZ-24MSD is a medical monitor designed for medical endoscopic display and surgical surveillance. It has advanced display technology and is designed for use in medical environments. It supports realtime display of dynamic images, adapts to a variety of complex environments in hospitals, and meets the needs of medical display for surgical treatment.

  • 1920 x 1080 @60Hz Resolution
  • Input: DVI, DP, HDMI
  • Nano Fouling Resistant Coating
  • Freeze, Purification Requirement
  • High Resolution Improve the Working Flow
  • CE, CCC & Reach Listed
  • Auto Source & Power Recovery
  • Built to run 24/7/365
  • Factory Lifetime Limited Warranty

Specification | Dimension | Spec & Manual

Series : MSD | Key Features : Surgical Display

Product Features

  • Model Number: VZ-24MSD
  • 24″ Black Panel Widescreen LED “A” Commercial-Grade Monitor
  • Nano Fouling Resistant Coating
  • High Resolution Improve the Working Flow
  • Precise Color Calibration, Freeze, Purification Requirement
  • Multiple Lut Mode Switching
  • CE, CCC & Reach Listed
  • 1920 x 1080 @60Hz Resolution
  • DVI / DP / HDMI
  • Auto Source & Power Recovery
  • Built to run 24/7/365
  • Factory Lifetime Limited Warranty

Display

Screen Size 23.8″
Max Resolution 1920 x 1080 @60Hz
Pixel Pitch 0.2745 mm x 0.2745 mm
Brightness 600 cd/m²(Typical)
Contrast Ratio 1000 : 1
Aspect Ratio 16 : 9
Viewing Angle (H/V) 178°/178°
Display Color 16.7 Million
Response Time < 14 ms
LUT 48 bit


Interface

DVI In 1
DP In 1
HDMI In 1


Special Features

Gamma Linear, GAMMA 1 / 2 / 3 / 4, CRT, DICOM 1 / 2, DSA, DSI, CT/MRI
Display Surface Treatment Haze 25%


Dimensions & Weight

Outline Dimension (W x H x D) 23.32 x 13.24 x 2.34” / 567 mm x 336.5 mm x 59.5 mm
Net Weight (without Stand) 4.2 kg / 9.25 lbs


General Summary

Power – Electrical Ratings TBD
Power – Consumption ≤ 40 W / ≤ 1.5 W (Standby)
Regulations FCC(A), CE, CCC, Reach, RoHs
Operating Temperature | Humidity -4°F ~ 140°F / -20°C ~ 60°C | 10 ~ 90% RH (non-condensing)
Storage Temperature | Humidity 32°F ~ 122°F / 0°C ~ 50°C | 20 ~ 85% RH (non-condensing)


Product Dimension & Weight
