Lens Calculator
1. Choose Camera Image Size. 2. Enter object distance. 3. Enter horizontal view needed. 4. Click the Calculate button to display focal length needed



Object Distance   ft
Horizontal View Needed   ft


Focal Length Needed   mm

FA Lens with lock screws Lense Lineup





MODEL Series/Resolution Format Focal Length F.NO. / IRIS Mount
VZ-BF3.5M-2   1 / 2" 3.5 mm F1.6 / Manual C
VZ-BF6M-2   1 / 2" 6 mm F1.4 / Manual C
VZ-BF12M-2   1 / 2" 12 mm F1.4 / Manual C
VZ-DF25M-2   1" 25 mm F1.4 / Manual C
VZ-BF35M   1 / 2" 35 mm F1.2 / Manual C
VZ-CF7.5M-2   2 / 3" 7.5 mm F1.4 / Manual C
VZ-CF16M-2   2 / 3" 16 mm F1.4 / Manual C
VZ-DF6M-3MP-2 3MP 1" 6 mm F1.8 / Manual C
VZ-DF6M-3MP-SWIR 3MP 1" 6 mm F1.8 / ShortWaveIR C
VZ-DF8M-3MP-2 3MP 1" 8 mm F1.4 / Manual C
VZ-DF8M-3MP-SWIR 3MP 1" 8 mm F1.4 / ShortWaveIR C
VZ-DF16M-3MP-2 3MP 1" 16 mm F1.4 / Manual C
VZ-DF16M-3MP-SWIR 3MP 1" 16 mm F1.4 / ShortWaveIR C
VZ-DF25M-16MP-2 3MP 1" 25 mm F1.4 / Manual C
VZ-DF25M-3MP-SWIR 3MP 1" 25 mm F1.4 / ShortWaveIR C
VZ-DF35M-16MP-2 3MP 1" 35 mm F1.4 / Manual C
VZ-DF35M-3MP-SWIR 3MP 1" 35 mm F1.4 / ShortWaveIR C


Scroll to learn more

Key Features



















FA LENS WITH LOCK SCREWS

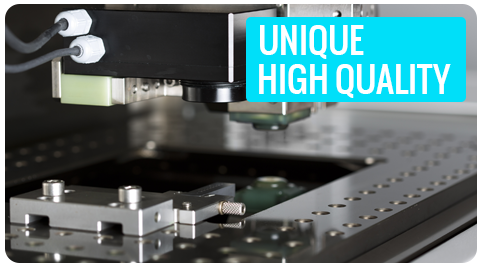

Machine vision / factory automation is the technology to replace or complement manual inspections and measurements with digital cameras and image processing. The technology is used in a variety of different industries to automate the production, increase production speed and yield, and to improve product quality.



ViewZ machine vision / factory automation (FA) lenses help provide accurate performance and system flexibility and include lock screws for the focus and iris ring.



Back to Features










FIXED FOCAL LENGTH LENSES



As CCTV cameras becomes more reliable and maintenance-free through the use of solid-state charge-coupled device (CCD) technology, the lenses also need to have the same high standards of quality and reliability.



Fixed focal length lenses from ViewZ meet these tough requirements by providing long and reliable operation with zero maintenance. A range from wide-angle to telephoto is available to cover virtually all applications in security and industrial observation systems. ViewZ fixed lenses are available with manual, DC and Video auto-iris options.



Back to Features










MADE IN JAPAN



All ViewZ lenses are all made in JAPAN and we produce superior quality products in a small-sized manufacturing environment, where we respect craftsmanship.



Viewz offers over 180 advanced lens solutions such as Fixed, Vari-Focal, and Zoom in both standard and megapixel resolutions for a variety of applications. Each ViewZ lens is backed by our 4-year warranty.



Back to Features










MANUAL IRIS



An iris that can be manually adjusted for different lighting conditions. This type of lens is normally used for fixed lighting applications or in conjunction with the electronic iris in the camera if the scene lighting level changes.





Back to Features










VARIOUS FOCAL LENGTH



Focal length is the basic characteristic of a lens and determines how much magnification it provides. The focal length defines the area of the scene that can be viewed with a given sensor size and is expressed in millimeters (mm).



ViewZ lenses have many options when it comes to focal length selection to fit your application.



Back to Features










C & CS MOUNT



CCTV lenses are available in two different lens mounts. C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. Many of today’s cameras can accept either type of lens, but it is important to make sure that camera and lens are compatible and set up properly.



C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. C-mount lenses can be used on CS-mount cameras by utilizing a 5mm adapter or adjusting the camera for C-mount lenses.



CS-mount lenses have a flange back distance of 12.5mm vs. 17.526mm for C-mount lenses. Because of the shorter back focal distance, CS-mount lenses can only be used on CS-mount cameras. Your picture will be out of focus if you use a CS-mount lens on a C-mount camera.





Back to Features




















PEACE OF MIND



ViewZ products are proudly designed and produced with the highest performance and quality in mind. As a result, each ViewZ lens is backed by our 4-year Parts and Labor Warranty. In the rare event that one of our products does not perform according to our specifications or our customer's expectations, ViewZ on-site Technical Support staff will work diligently to resolve each case. ViewZ may also choose to provide an Advanced Replacement unit depending on the details of each individual case.





Back to Features
