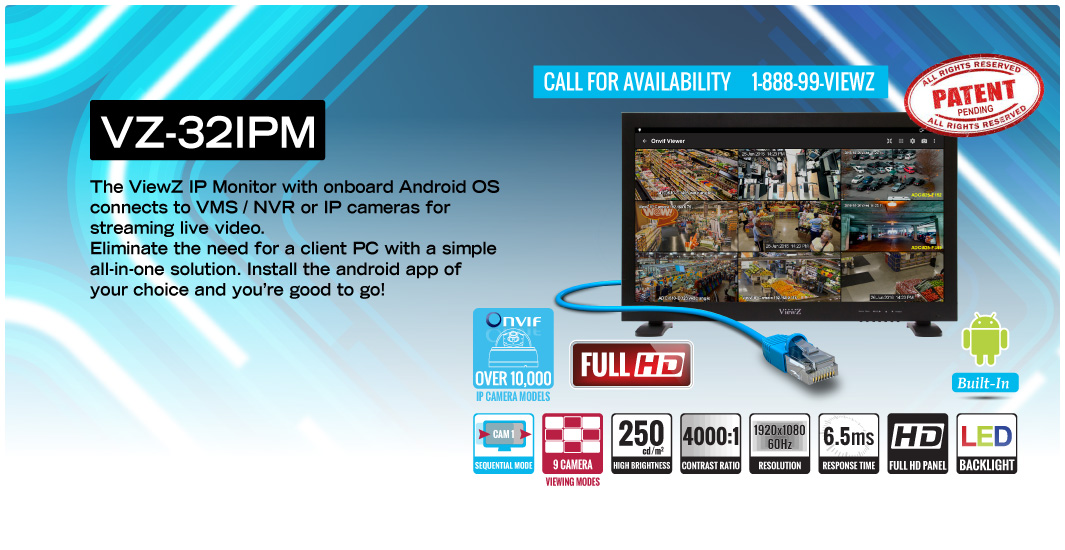

Model Number: VZ-32IPM |
|
32" Flat Panel Widescreen LED "A" Commercial-Grade Monitor |
|
One 10/100 Ethernet Port and 2 USB Ports | |
Ideal for Remote Viewing 1 - 9 Cameras | |
Sequential Viewing Mode & 1 / 2 / 3 / 4 / 6 / 9 Channel Viewing Modes Available (via built-in ViewZ App) | |
Over 10000 IP Camera Models Supported including ViewZ IP-PVM series | |
One Micro SD and One Micro USB Port | |
Full HD 1920x1080 Resolution / 16:9 Ratio | |
Auto Power / Source Recovery | |
VESA 200x200 Wall Mount Support | |
AC100 ~ 240V(50/60Hz) | |
3-Year Warranty |
Download VZ-32IPM PDF Specifications Sheet
Download ViewZ Onvif Viewer App Manual
Screen Size | 32" |
Max Resolution | 1920 x 1080 @60Hz |
Pixel Pitch | 0.36375mm x 0.36375mm |
Brightness | 250cd/m²(Typical) |
Contrast Ratio | 4000:1 |
Aspect Ratio | 16 : 9 |
Viewing Angle (H/V) | 178°/178° |
Display Color | 16.7 Million |
Response Time | < 6.5ms |
Ethernet 10/100 | 1 |
USB 2.0 | 2 |
Micro SD | 1 |
HDMI Out | 1 |
Audio Out | 1 |
I/O (Reset) | 1 |
VMS Provider | Exacq, Genetec, Avigilon, Milestone, I3international and more |
Sequential Viewing Mode | Available |
Multi Channel Viewing Modes | 1 / 2 / 3 / 4 / 6 / 9 |
Multi-Lingual Language | English, German, Spanish, French, Italian, Portuguese, Netherlander |
Outline Dimension | 29.92” x 19.63” x 7.08” |
(W x H x D) | 760.0mm x 498.8mm x 180mm |
Net Weight | 27.62 lbs / 12.53 kg |
Gross Weight | 34.43 lbs / 15.62 kg |
Vesa | 200 mm x 200 mm / M6 x L8 mm |
Android OS | Ver. 6.0. |
CPU | Quad Core, Cortex-A17, 1.8GHz |
RAM | 2 GB DDR3 |
Storage | 16GB (NAND-Flash) |
External Storage | Micro SD up to 32GB / USB 2.0 up to 2TB |
Transmitter - IR Remote Control | Yes |
Power - Electrical Ratings | AC100 ~ 240V[50/60Hz] |
Warranty - Parts / Labor | 3 Year / 3 Year |
Operating Temperature | 32 - 104°F / 0 - 60°C |
Compatible Mounts - Wall | VZ-AM02, VZ-WM50 |
Compatible Mounts - Ceiling | VZ-CMKiT-01, VZ-CMKiT-02 |
* Specifications subject to change without notice |
