  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  ENB/EHB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 42” 1080p Premium Metal Bezel (Full HD) CCTV LED Monitor
    • Hybrid AV (AHD / TVI / CVI) Input / Output (Loop-through)
    • AV(CVBS) Input / Output (Loop-through)
    • 16:9 / 4:3 Ratio Available
    • Digital & Analog Inputs - AV, HDMI and VGA
    • 3D Comb-Filter, De-Interlace, Built-in Speakers
    • Image Rotation Feature Prevents “Pixel Burn-In"
    • Auto Source & Power Recovery
    • 3-Year Warranty
Hover to zoom, click to view



Compatible Mounts

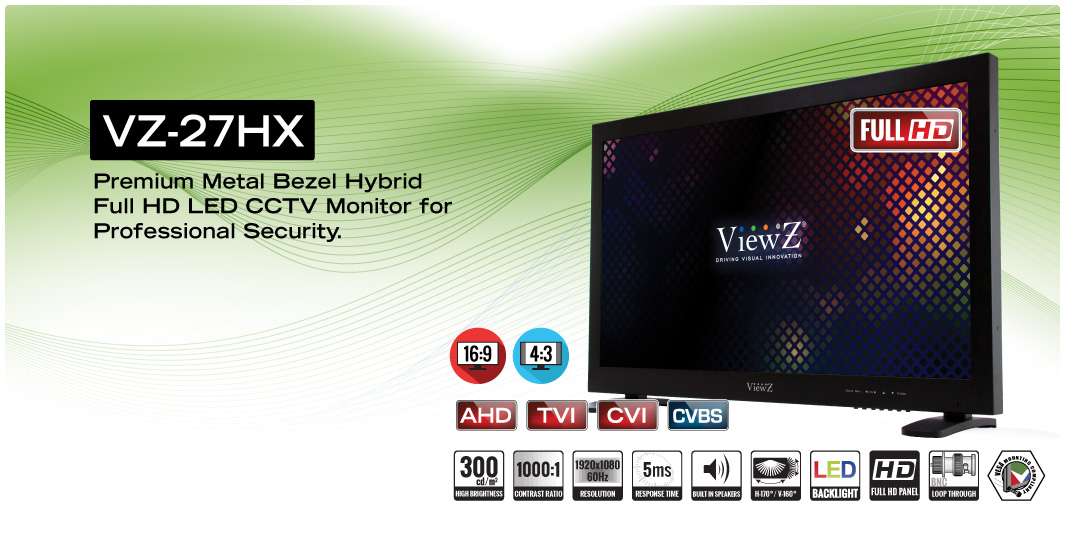

Model Number: VZ-27HX

Black All-Metal Flat Housing

Commerical A-Grade Panels
Full HD 1920x1080 / Brightness 300cm/m²
Hybrid 1 AV(AHD/TVI/CVI) Input / 1 AV (AHD/TVI/CVI) Output (Loop-through)
1 AV(CVBS) Input / 1 AV (CVBS) Output (Loop-through)
HDMI / VGA / PC Audio In/ AV Audio In
3D Comb-Filter / De-Interlace
OSD / Remote Control
5W Speaker x 2
Auto Source & Power Recovery
100-240V~, 50/60Hz (Auto Switching)
3-Year Warranty













Download VZ-27HX PDF Specifications Sheet

Download VZ-27HX PDF Manual
















  Screen Size 27"
  Max Resolution 1920 x 1080 @60Hz
  Pixel Pitch 0.311mm x 0.311mm
  Brightness 300cd/m²(Typical)
  Contrast Ratio 1000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 170°/160° (CR > 10)
  Display Color 16.7 Million
  Response Time < 5ms
  Video System NTSC / PAL


  AV (AHD/TVI/CVI) In / Out 1 / 1
  AV (CVBS) In / Out 1 / 1
  RGB In (15pin D-Sub) 1
  HDMI In 1
  AV Audio In/ PC Audio In 1 / 1


  Built-in Speaker 5 W x 2


  Filter Type 3D Comb filter / De-Interlace
  Image Retention Yes
  Multi-Lingual Language English, Spanish, French,
German, Italian


  Outline Dimension  (W x H x D) 25.33" x 16.82" x 7.08"
  643.5mm x 427.3mm x 180mm
 Net Weight / Gross Weight 20.65 lbs ( 9.37 kg ) / 29.80 lbs ( 13.52 kg )


  Vesa 75mm x 75mm, 100mm x 100mm
  4 x ( M4 x L10 ) Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC100 ~ 240V(50/60Hz)
  Power - Consumption 40W
  Warranty - Parts / Labor 3 Year / 3 Year
  Operating Temperature 14 - 122°F / -10°C - 50°C
  Compatible Mounts - Wall VZ-AM02, VZ-WM50
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK02, VZ-CMK03





  * Specifications subject to change without notice
