  • LED  4K UHD  HD PVM N  IP PVM N   IPM   PRO  DSM  UNB  RTC  RTN  LX  RCR  CME/CMP  Hybrid CMX Monitor
    • 27” LED CCTV Monitor
    • HD 1080p Resolution
    • Digital & Analog Inputs - BNC, S-Video, VGA, HDMI and DVI
    • 3D Comb-filter, De-interlace, Built-in Speakers
    • Image Rotation Feature Prevents “Pixel Burn-In
    • DC 12V output for Camera
    • 3-Year Warranty



Compatible Mounts

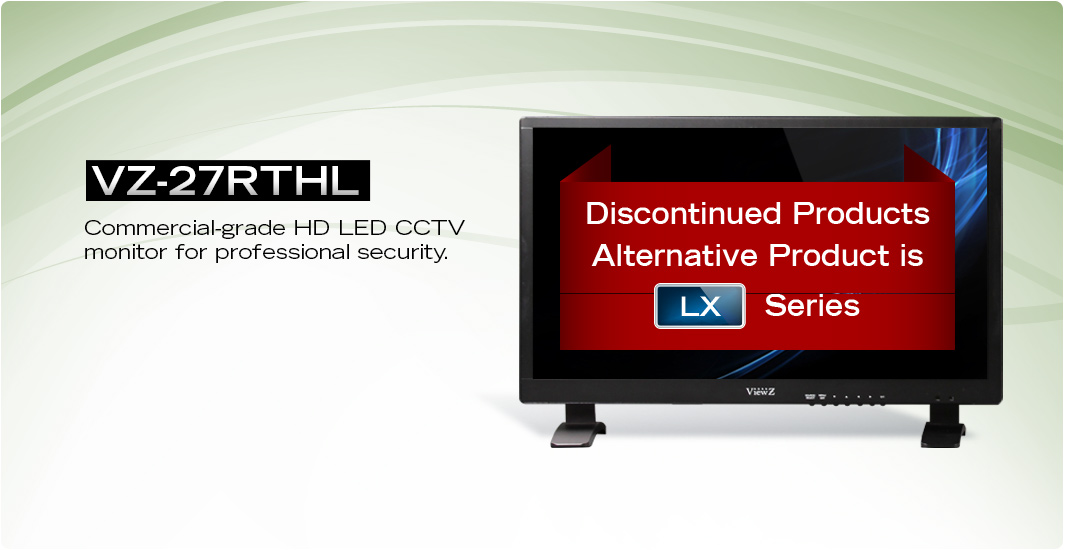

Model Number: VZ-27RTHL

27" Black All Metal Flat Panel LED "A" Commerical-Grade Monitor
Full HD 1920x1080 / Brightness 300cm/m2
2 Looping BNC(NTSC/PAL) / 2 HDMI / DVI / VGA / Component / S-Video / PC Stereo Inputs
3D Comb Filter / De-Interlace
OSD/Remote Control
PIP / PBP / VOV
2W Speaker x 2
Auto Power and Source Recovery
100-240V~, 50/60Hz (Auto Switching)
3-Year Warranty













Download VZ-27RTHL PDF Specifications Sheet

Download VZ-27RTHL PDF Manual
















  Screen Size 27"
  Max Resolution 1920 x 1080 @60Hz
  Pixel Pitch 0.3112mm x 0.3112mm
  Brightness 300cd/m²(Typical)
  Contrast Ratio 3000:1
  Aspect Ratio 16 : 9
  Viewing Angle (H/V) 178°/178°
  Display Color 16.7 Million
  Response Time < 12ms
  Video System NTSC / PAL
  Frequency (H) 31 ~ 80Khz
  Frequency (V) 56 ~ 75Hz


  AV (Composite) In / Out 2 / 2
  S-Video In / Out 1 / 1
  RGB In (15pin D-Sub) 1
  Component (Y, Pb, Pr, Sound L / R) In 1
  DVI In 1
  HDMI 1 / HDMI 2 1 / 1
  Trigger In / DC12V OUT(CAMERA USE) 1 / 1
  AV (Composite) Sound In/Out (RCA Type) 2
  PC Stereo In/Out 1 / 1


  Built-in Speaker 2 W x 2


  Multi Display Function PIP / PBP / VOV
  Filter Type 3D Comb filter / De-Interlace
  Trigger Sensor / Image Rotation Yes / Yes
  Video Resolution (Max) 600 TV Line
  Multi-Lingual Language English, Spanish, French, German,
Italian, Portuguese, Dutch


  Outline Dimension  (W x H x D) 25.69" x 16.80" x 7.09"
  652.4mm x 426.6mm x 180mm
 Net Weight / Gross Weight 23.15 lbs ( 10.5 kg ) / 32.19 lbs ( 14.6 kg )


  Vesa 100mm x 100mm
  200mm x 200mm / 4 x ( M6 x 8 ) Screws


  Transmitter - IR Remote Control Yes
  Power - Electrical Ratings AC100 ~ 240V(50/60Hz)
  Power - Consumption 48W
  Warranty - Parts / Labor 3 Year / 3 Year
  Warranty - MTBF (Approx.) 50,000 Hours
  Operating Temperature 32 - 104°F / 0 - 40°C
  Compatible Mounts - Wall VZ-AM02, VZ-WM50
  Compatible Mounts - Ceiling VZ-CMKiT-01, VZ-CMKiT-02, VZ-CMK02, VZ-CMK03





  * Specifications subject to change without notice
