Lens Calculator
1. Choose Camera Image Size. 2. Enter object distance. 3. Enter horizontal view needed. 4. Click the Calculate button to display focal length needed

Object Distance   ft
Horizontal View Needed   ft

Focal Length Needed   mm

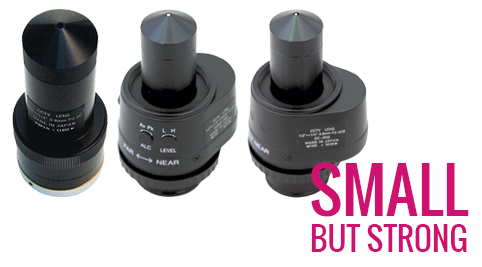

Pinhole Lense Lineup



MODEL Format Focal Length F.NO. / IRIS Mount
VZ-AP3.8M 1 / 3" 3.8 mm F2.4 / Manual CS
VZ-AP3.8DC 1 / 3" 3.8 mm F2.4 / DC CS
VZ-BP3.8M 1 / 2" 3.8 mm F2.4 / Manual C

Scroll to learn more

Key Features











ViewZ pinhole lenses used for applications where the camera and lens must be hidden. The front of lens has a small opening to allow the lens to view an entire room through a small hole in a wall or other flat surface. They are available in 1/2" and 1/3” formats with manual or DC auto-iris.


Back to Features








All ViewZ lenses are all made in JAPAN and we produce superior quality products in a small-sized manufacturing environment, where we respect craftsmanship.


Viewz offers over 180 advanced lens solutions such as Fixed, Vari-Focal, and Zoom in both standard and megapixel resolutions for a variety of applications. Each ViewZ lens is backed by our 4-year warranty.


Back to Features







A Video type auto-iris lens has an internal circuit that receives voltage and power from the camera to adjust the iris to changing light conditions. Video type lenses are recommended for use in inconsistent lighting conditions (e.g. outdoors).



Back to Features









An iris that can be manually adjusted for different lighting conditions. This type of lens is normally used for fixed lighting applications or in conjunction with the electronic iris in the camera if the scene lighting level changes.


* VZ-AP3.8M, VZ-BP3.8M


Back to Features







An auto-iris lens without an internal circuit to control the iris. All iris control voltages come from a circuit located within the camera to adjust the iris for changing light levels. DC-type lenses are recommended for use in inconsistent lighting conditions (e.g. outdoors). These are sometimes referred to as DD (Direct Drive) lenses.


* VZ-AP3.8DC


Back to Features








Focal length is the basic characteristic of a lens and determines how much magnification it provides. The focal length defines the area of the scene that can be viewed with a given sensor size and is expressed in millimeters (mm).


ViewZ lenses have many options when it comes to focal length selection to fit your application.


Back to Features







CCTV lenses are available in two different lens mounts. C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. Many of today’s cameras can accept either type of lens, but it is important to make sure that camera and lens are compatible and set up properly.


C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. C-mount lenses can be used on CS-mount cameras by utilizing a 5mm adapter or adjusting the camera for C-mount lenses.


CS-mount lenses have a flange back distance of 12.5mm vs. 17.526mm for C-mount lenses. Because of the shorter back focal distance, CS-mount lenses can only be used on CS-mount cameras. Your picture will be out of focus if you use a CS-mount lens on a C-mount camera.



Back to Features












ViewZ products are proudly designed and produced with the highest performance and quality in mind. As a result, each ViewZ lens is backed by our 4-year Parts and Labor Warranty. In the rare event that one of our products does not perform according to our specifications or our customer's expectations, ViewZ on-site Technical Support staff will work diligently to resolve each case. ViewZ may also choose to provide an Advanced Replacement unit depending on the details of each individual case.
