Lens Calculator
1. Choose Camera Image Size. 2. Enter object distance. 3. Enter horizontal view needed. 4. Click the Calculate button to display focal length needed



Object Distance   ft
Horizontal View Needed   ft


Focal Length Needed   mm

VARI-FOCAL Day / Night Lense Lineup





MODEL Format Focal Length F.NO. / IRIS Mount
VZ-A308VDCIR 1 / 3" 3 - 8 mm F1.2/ DC CS
VZ-A308AVDCIR 1 / 3" 3 - 8 mm F0.95 / DC CS
VZ-A555VMIR 1 / 3" 5 - 55 mm F1.4 / Manual CS

Scroll to learn more


Key Features



















VARI-FOCAL LENS



ViewZ vari-focal lenses offer the maximum flexibility when the installation setting requires a wide range of focal lengths. The focal length can be adjusted easily on all lenses and comes with either manual iris, for installations with constant light conditions, or with auto-iris for settings with changing light conditions. We offer a wide range of vari-focal lenses, including megapixel and IR (Day/Night).



Back to Features










24 / 7 SURVEILLANCE APPLICATION



There is a growing need for compact, high quality lenses for 24/7 surveillance applications such as parking lots, factory premises and streets. Continuous surveillance is also required for public facilities such as airports, harbors, highways and border patrol, requiring more versatile focal lengths and higher zoom ratios.



ViewZ Day/Night (IR) lenses respond to infrared illumination to capture clear, corrected images in all lighting conditions. We offer a lineup of lenses from the standard focal length of 2.7-12 mm to the diverse focal length of 5-55mm featuring ED (Extra-low Dispersion) glass for maximum focus shift correction under IR and excellent daytime performance.





Back to Features
















MADE IN JAPAN



All ViewZ lenses are all made in JAPAN and we produce superior quality products in a small-sized manufacturing environment, where we respect craftsmanship.



Viewz offers over 180 advanced lens solutions such as Fixed, Vari-Focal, and Zoom in both standard and megapixel resolutions for a variety of applications. Each ViewZ lens is backed by our 4-year warranty.



Back to Features

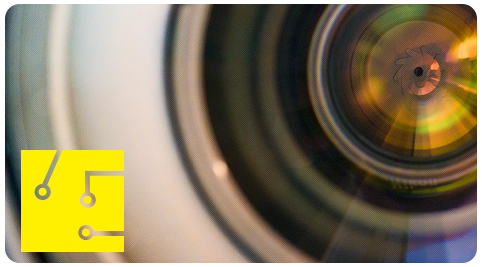

VIDEO AUTO-IRIS



A Video type auto-iris lens has an internal circuit that receives voltage and power from the camera to adjust the iris to changing light conditions. Video type lenses are recommended for use in inconsistent lighting conditions (e.g. outdoors).



*



Back to Features

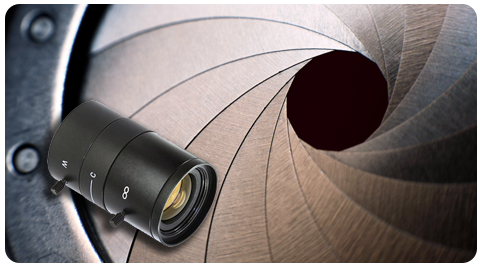

MANUAL IRIS



An iris that can be manually adjusted for different lighting conditions. This type of lens is normally used for fixed lighting applications or in conjunction with the electronic iris in the camera if the scene lighting level changes.



* VZ-A555VMIR



Back to Features

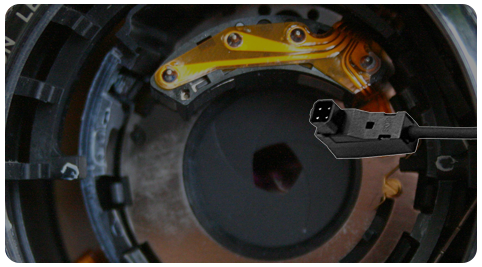

DC-TYPE AUTO-IRIS



An auto-iris lens without an internal circuit to control the iris. All iris control voltages come from a circuit located within the camera to adjust the iris for changing light levels. DC-type lenses are recommended for use in inconsistent lighting conditions (e.g. outdoors). These are sometimes referred to as DD (Direct Drive) lenses.



* VZ-A308VDCIR, VZ-A308AVDCIR



Back to Features

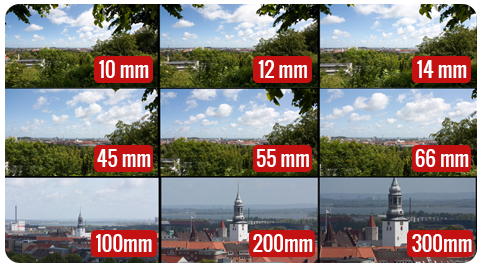

VARIOUS FOCAL LENGTH



Focal length is the basic characteristic of a lens and determines how much magnification it provides. The focal length defines the area of the scene that can be viewed with a given sensor size and is expressed in millimeters (mm).



ViewZ lenses have many options when it comes to focal length selection to fit your application.



Back to Features

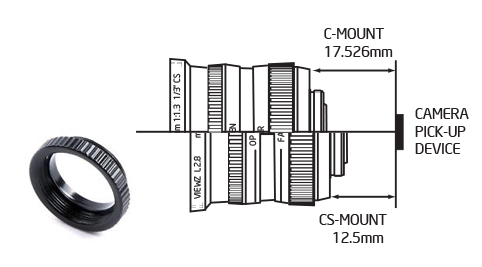

C & CS MOUNT



CCTV lenses are available in two different lens mounts. C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. Many of today’s cameras can accept either type of lens, but it is important to make sure that camera and lens are compatible and set up properly.



C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. C-mount lenses can be used on CS-mount cameras by utilizing a 5mm adapter or adjusting the camera for C-mount lenses.



CS-mount lenses have a flange back distance of 12.5mm vs. 17.526mm for C-mount lenses. Because of the shorter back focal distance, CS-mount lenses can only be used on CS-mount cameras. Your picture will be out of focus if you use a CS-mount lens on a C-mount camera.





Back to Features

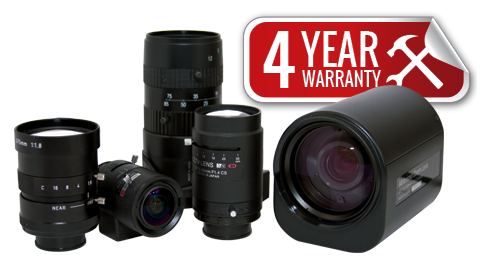

PEACE OF MIND



ViewZ products are proudly designed and produced with the highest performance and quality in mind. As a result, each ViewZ lens is backed by our 4-year Parts and Labor Warranty. In the rare event that one of our products does not perform according to our specifications or our customer's expectations, ViewZ on-site Technical Support staff will work diligently to resolve each case. ViewZ may also choose to provide an Advanced Replacement unit depending on the details of each individual case.
